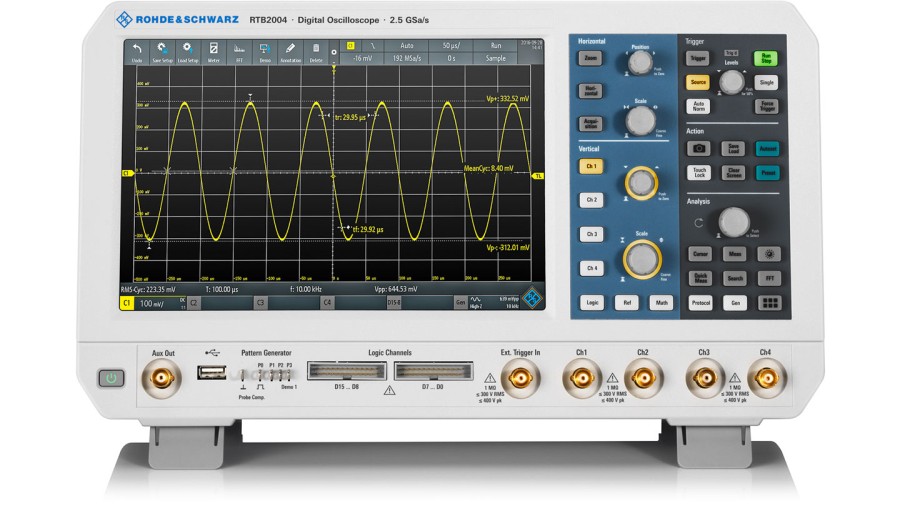

Manufacturer: Rohde&Schwarz
Model: RTB2004 + RTB-B241
Order No.: 1333.1005P14
Warranty: 12 months
Bandwidth: 100 MHz
Channels: 4
Max. Sample Rate: 2.5 Gsa/s
Max.Memory Depth: 20 Msample
Rise time : 3.5ns
Update Rate: 50.000 Waveforms/s
Input impedance : 1 MΩ ± 2% with 19 pF ± 2 pF (meas.)
Input sensitivity: 1 mV/div to 5 V/div
Timebase range: selectable between 1 ns/div and 500 s/div
DC gain accuracy
Input sensitivity > 5 mV/div ± 1.5% of full scale
Input sensitivity ≤ 5 mV/div ± 2% of full scale
ADC resolution: 10 bit
Optional MSO: 16 digital channels
Signal Generator : 0.1Hz ~ 25Mhz (since), 14 bit, 250Msa/s
Screen : 10.1" WXGA TFT color display (1280 × 800 pixel)
Interfaces:USB host with MTP, USB device, LAN, powerful web server for remote display and operation
Dimensions (W × H × D): 390 mm × 220 mm × 152 mm
Weight : 2.5 kg (5.5 lb)
Scope of delivery: User manual; Power Cord; R&S RT-ZP03 single-ended pasive probes for each channel; USB Cable
