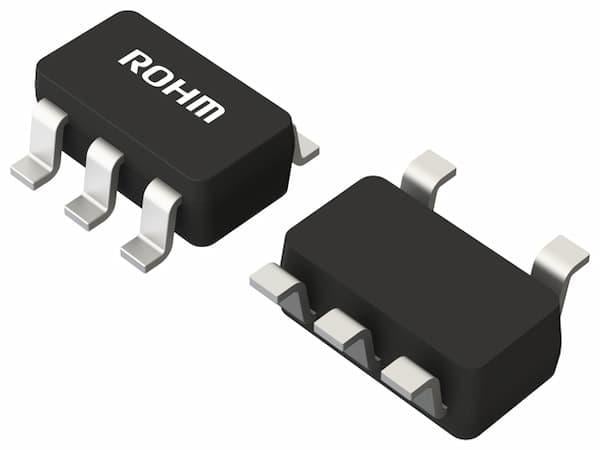

ROHM Semiconductor BU25SD2MG-MTR CMOS LDO Regulator IC Pwr Linear Reg Single Output LDO
Manufacturer: ROHM Semiconductor Model: BU25SD2MG-MTR - Contact
Polarity: Positive
Output Type: Fixed
Unit Weight: 30 mg
Mounting Style: SMD/SMT
Output Current: 200 mA
Output Voltage: 2.5 V
Dropout Voltage: 100 mV
Line Regulation: 4 mV
Load Regulation: 1 mV
Number of Outputs: 1 Output
Input Voltage - Max: 6 V
Input Voltage - Min: 1.7 V
Dropout Voltage - Max: 180 mV
Pd - Power Dissipation: 540 mW
Voltage Regulation Accuracy: 2 %
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
PSRR / Ripple Rejection - Typ: 68 dB
