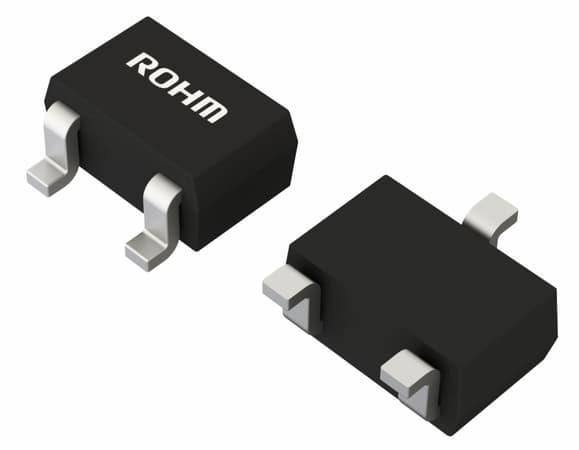

ROHM Semiconductor DTC143ZUAT106 Digital Transistors NPN 50V 100MA SOT-323
Manufacturer: ROHM Semiconductor Model: DTC143ZUAT106 - Contact
Width: 1.25 mm
Height: 0.8 mm
Length: 2 mm
Unit Weight: 5 mg
Configuration: Single
Mounting Style: SMD/SMT
Output Voltage: 100 mV
Transistor Polarity: NPN
Pd - Power Dissipation: 200 mW
Typical Input Resistor: 4.7 kOhms
Typical Resistor Ratio: 10
DC Current Gain hFE Max: 80
Emitter- Base Voltage VEBO: 1.3 V
Maximum Operating Frequency: 250 MHz
Continuous Collector Current: 100 mA
Maximum Operating Temperature: + 150 C
DC Collector/Base Gain hfe Min: 80 at 10 mA, 5 V
Collector- Emitter Voltage VCEO Max: 300 mV
