Color: Black
Unit Weight: 1 g

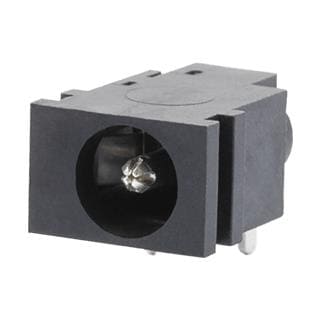

Connector Type: Jack
Contact Gender: Pin (Male)
Current Rating: 5 A
Mounting Angle: Right Angle
Mounting Style: Through Hole
Voltage Rating: 24 VDC
Contact Plating: Silver
Contact Material: Brass
Housing Material: Polyamide (PA)
Termination Style: Through Hole
Flammability Rating: UL 94 V-0
Insulation Resistance: 100 MOhms
Inside Contact Diameter: 1.65 mm
Outside Contact Diameter: 5.15 mm
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 25 C
