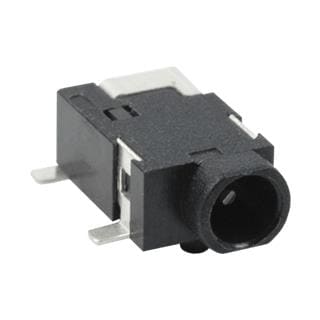

Same Sky (formerly CUI Devices) PJ-042-SMT-TR Jacks power jack, 0.65 x 2.6 mm, horizontal, SMT, high current, 1 switch, T&R package
Manufacturer: Same Sky (formerly CUI Devices) Model: PJ-042-SMT-TR - Contact
Color: Black
Unit Weight: 770 mg
Connector Type: Jack
Contact Gender: Pin (Male)
Current Rating: 1 A
Mounting Angle: Right Angle
Mounting Style: SMD/SMT
Voltage Rating: 24 VDC
Contact Plating: Silver
Contact Material: Brass
Housing Material: Polyamide (PA)
Termination Style: Solder
Flammability Rating: UL 94 V-0
Insulation Resistance: 100 MOhms
Inside Contact Diameter: 0.65 mm
Outside Contact Diameter: 2.6 mm
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 25 C
