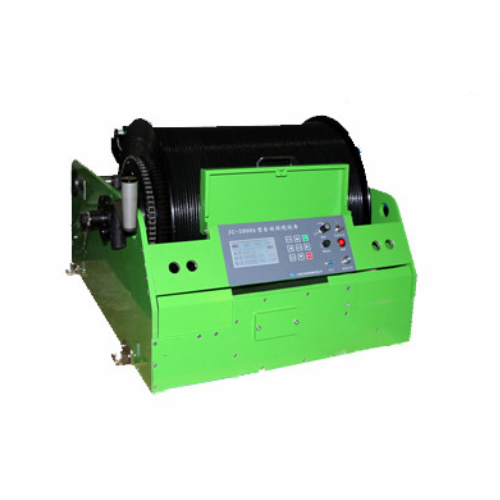

Samyon JC-2000A Automatic Drain Winch (0～2000 m)

Name: Samyon JC-2000A Automatic Drain Winch (0～2000 m)
Brand: Samyon

ManufacturerSamyon(View more products from this manufacturer)

ModelJC-2000A

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

I. Main technical features

1. With automatic discharge cable function, through a combination of precision parts can be satisfied with the automatic discharge cable effect.

2. Using SCM control technology, comprehensive real-time information, advanced technical indicators, the constant speed control to achieve "DZ / T 0196.8-1997" A level standard.

3. Decentralization and upgrade of the cable with automatic / manual, constant speed control, point measurement / continuous measurement, depth correction function.

4. With automatic braking function of a power outage, and when the hand after lifting off, using a positive shake rise, the reverse automatic braking system, safe and reliable.

5. With the running process of the pull over the automatic parking protection function it can ensure the safety of the underground probe tube and the instrument.

II. Main technical specifications

1. Speed range: 0 m / min ~ 30 m / min;

2. Depth range: 0 m ~ 2000 m;

3. Control: integrated intelligent control panel;

4. Constant speed range: 0.5 m / min ~ 20 m / min, error ± 5%;

5. Display range: 0m ~ 9999.99 m, error ≤ ± 0.4 ‰;

6. Control: automatic, manual, calibration;

7. Control direction: up, down;

8. Measurement: point measurement, continuous;

9. Cable specifications: 2000 m plastic cable;

10. Working temperature: -10 ℃ ~ 70 ℃;

11. Power Supply: AC (220 ± 10%) V, 50Hz;
