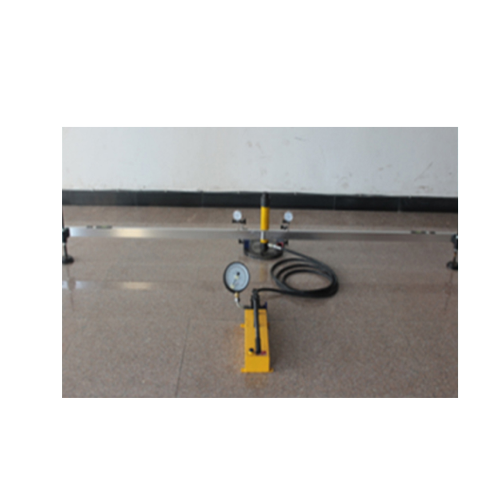

The K30 flat load meter is suitable for testing the foundation of the roadbed, base layer and other foundations after coarse, fine-grained soil and soil compaction. It can also be used to calculate the deformation modulus of uniform foundation soil.
Basic structure:
The flat loader consists of a loading system, a bridge, etc.
1. Loading system: It consists of load plate, jack, manual oil pump and high pressure oil pipe. The load diameter is 300mm, the maximum thrust of the jack is 10t, the stroke is 120mm, the lifting rod is raised by 100mm, the pressure gauge is 2.5MPa, and the accuracy grade is 0.4.
2. Measuring bridge: consists of support, beam and dial gauge bracket, the beam can be raised and lowered along the support column to adjust the height.
Parameter:
1. Load plate diameter: 300mm
2. Jack loading energy range: 0-10t
3. Jack stroke: 120mm
4. Bridge span: 3000mm
5. Pressure test range: 0-2.5MPa
6. Shift test range: 0-10mm
