Product Application:

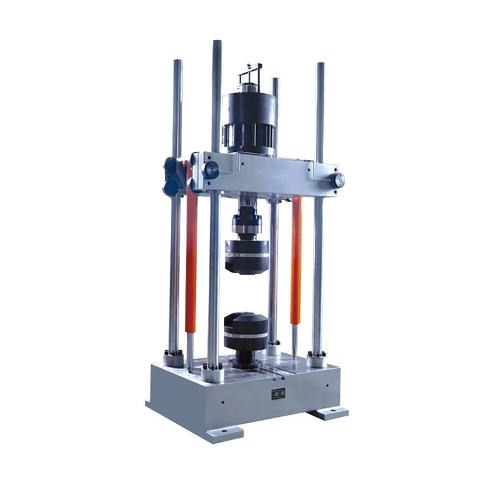

- This series of electro-hydraulic servo static and dynamic universal testing machine is mainly used for dynamic and static mechanical properties testing of materials and components, including tensile, compression, low cycle and high cycle fatigue tests of materials and components. It can be used for crack propagation fracture mechanics of various materials and various other mechanical tests by configuring corresponding accessories and test software. The test clamp can be adjusted to perform dynamic and static tests on various non-metallic materials and components.
- This series of electro-hydraulic servo static and dynamic universal testing machine can be widely used in aerospace, ship, military, locomotive, automobile, atomic energy, scientific research institutes, higher education and other fields.
Technical Parameters:
Maximum test force: 500kN
Test force indication accuracy: Within the range of 2%-100% FS, each point is ±1.0%
Displacement accuracy: ±0.5%FS
Frequency range (Hz): 0.01—50 Controller 0.01—100
Number of columns: 4
Hydraulic forced for maximum distance between chucks (mm): 1000
Effective distance between columns (mm): 850*500
Column diameter (mm): 90
Actuator rod diameter/plug diameter (mm): 150/260
Pump station total flow (L/min): 110
Pump station pressure (MPa): 21
Pump station total power (kW): 45
Power supply: 380V， AC
