Application

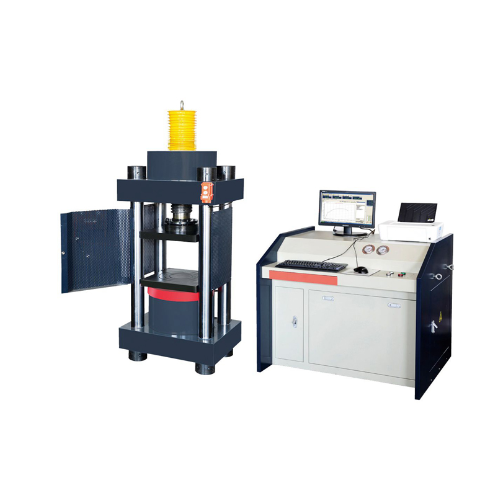

Computer Automatic concrete cube test machine mainly used for concrete
rupture strength testing cement, plastic sand, and red brick building materials compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
Technical parameters
Max. Load: 3000kN
Control method: Computer auto control loading process
Test space adjustment mode: Electric ball screw adjust
Oil source control cabinet structure: One-piece oil source control cabinet
Test class: 1 class
Testing range: 4%-100%FS
Load display accuracy: Better than ±1%
Piston stroke: 150mm
Distance between upper and lower plate: 500mm
Max space between two columns: 400mm
Size of upper and lower platen: 400×500mm
Power supply: 2.3Kw/AC380V
