Main Function and Usage

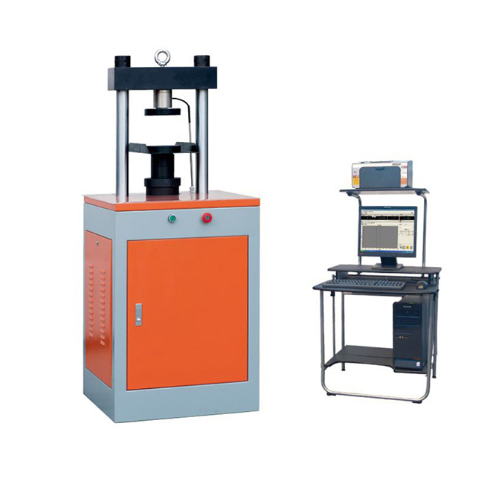

1.The model SYW-300D can be used in the compression strength testing of cement mortar
2.Control Method of Testing Rate: Electro-hydraulic closed-loop control
3.Driven by servo motor,this product avoids leak and blocking of servo value,contracting to the traditional hydraulic type.
4.Testing the force by load sensor,the measure range can be as 2% to 100% of the full Measure scale, with high accuracy.
Main Specifications and Technical Parameter
Max. Test Compression Force: 300 kN
Measure Scale: 2%-100%FS
Accuracy Class: Class 1
Loading Speed: 2.4kN/S±200N/S
Pressure Plate Space(mm): 260
Top and Bottom Pressure Plate Dimension (mm): Φ155
Efficient Stroke of Lead Screw(mm): 100
Column Clear Space(mm): 300
Motor Power(kW): 0.75
Overall Dimension(L*W*H)(mm): 600×560×1500
Weight (kg): 400
