Application:

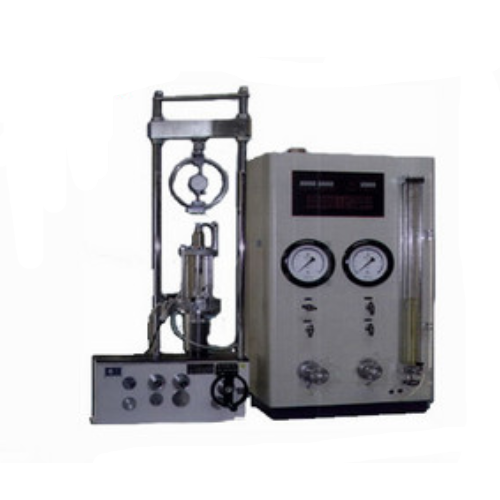

TSZ30-2.0 Bench Triaxial Test Apparatus is used to determine the strength and deformation characteristics of the soil specimen under the static axial load. It can perform unconsolidated-undrained shear test (UU), consolidated-undrained shear test (CU) and consolidated-drained shear test (CD). With high confining pressure, it does not need air-compressor and nitrogen cylinder. It can meet test requirements for civil engineering projects such as large buildings and dam construction etc.
Specifications:
1. Specimen : Ø39.1 x 80mm, Ø61.8 x 125mm
2. Capacity : 30kN
3. Platen travel : 0 – 90mm
4. Strain rate: 0.0024 – 4.5mm/min. Mechanical speed with 15 gears
5. Confining pressure : 0 – 2MPa Digital control and display
6. Back pressure : 0 – 0.8MPa Digital control and display
7. Pore pressure : 0 – 2MPa
8. Volume deformation : 0 – 50ml, minimum division: 0.1ml
9. Power supply : 220V ±10% 50Hz
10. Dimension : Main unit : 500 x 430 x 1200mm (L x W x H)
Controller : 500 x 500 x 925mm (L x W x H)
11. Weight : 175kg
