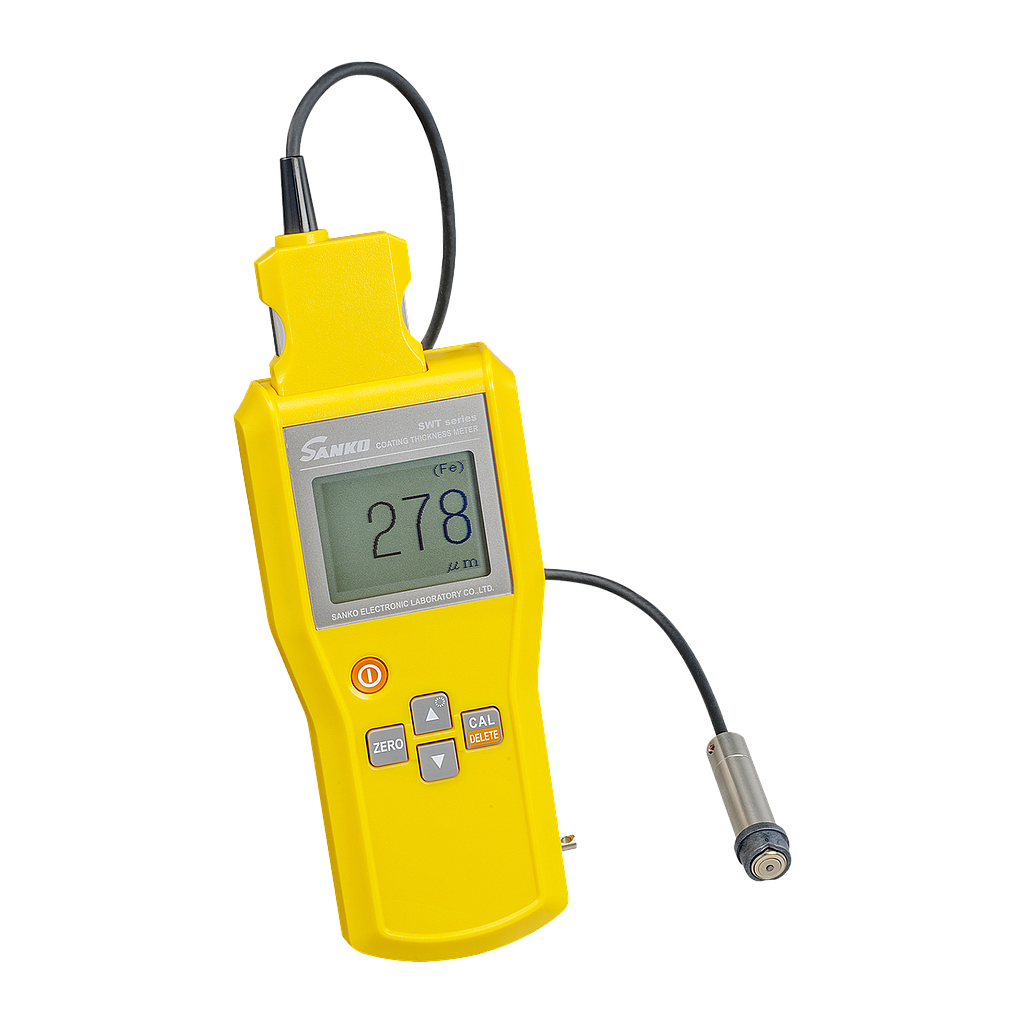

SANKO SWT-7000III N Eddy Current Coating Thickness Meter (0~2mm)

Method: Eddy current

Range: 0~2mm

Display: Graphic LCD (data, messages), Backup light

Resolution:

1µm: 0~999µm

switching to

+ 0.1µm: 0~400µm

+ 0.5µmm: 400~500µm

+ 0.01mm: 1~2mm

Accuracy (perpendicularly testing on flat face):

+ 0~100µm: ±1µm or ±2% of reading

+ 1µm~2mm: ±2% of reading

Power source:

+ Dry battery (LR6×2), Auto-power off,

+ Continuous operation hours: 50hrs.

Temperature: 0~40°C (non-condensing)

Dimensions: 72(W)×30(H)×156(D)mm

Weight: ≈270g

Accessories: Thickness standards, Zero plate for checking, Carrying case

Probe: One point contact constant pressure type, V cut, φ15x47mm
