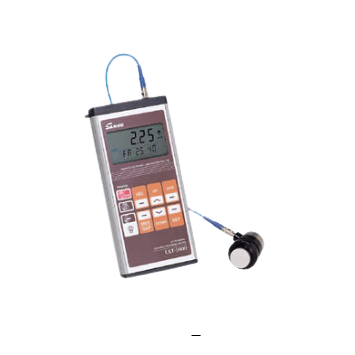

SANKO ULT-5000 Ultrasonic Coating Thickness Meter (0.01mm; ±0.1mm)

Measuring method: Ultrasonic pulse echo system

Measuring range:

   Ch1: FRP: 0.5mm to 5.0mm

   Ch2: Epoxy No.1: 0.5mm to 5.0mm

   Ch3: Epoxy No.2: 1.5mm to 6.0mm

   Ch4: Urethane: 0.5mm to 6.0mm

Display: LCD digital type with electric back light

Resolution: 0.01mm

Accuracy: ±0.1mm

Channel: 4 Channels (Plus spare 2 Channels)

Measurement mode: 3 modes (Measurement mode/ SAP Measurement mode "+"/ SAP Measurement mode "-")

Power source:

- DC3.0V（Alkaline battery LR6 2pcs）

- Operational hours: Approx.10 hours

Dimensions & Weight: W70×H155×D28mm, Approx.370g
