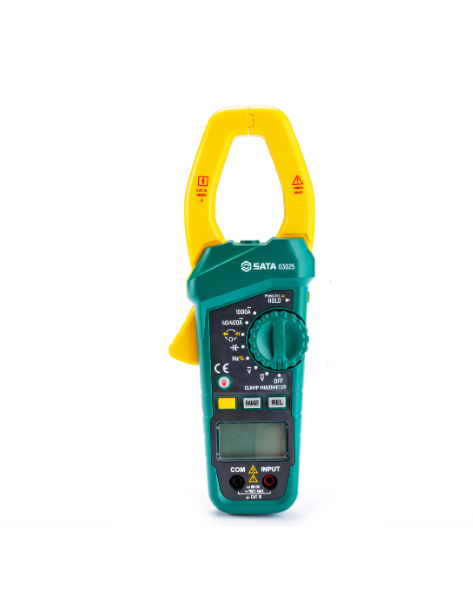

SATA 03025 Large Jaw Clamp Multimeter (1000A, 1000V)

Security Level: CAT III 1000V

Maximum reading value: 3999

DC voltage

Range: 4V / Resolution: 1mV / Accuracy: ±(0.8%+5)

Range: 40V / Resolution: 10mV / Accuracy: ±(0.8%+5)

Range: 400V / Resolution: 100mV / Accuracy: ±(0.8 %+5)

Range: 1000V / Resolution: 1V / Accuracy: ±(1.0%+5)

AC voltage

Range: 4V / Resolution: 1mV / Accuracy: ±(0.8%+5)

Range: 40V / Resolution: 10mV / Accuracy: ±(1.2%+5)

Range: 400V / Resolution: 100mV / Accuracy: ±(1.2 %+5)

Range: 750V / Resolution: 1V / Accuracy: ±(1.2%+5)

Alternating current

Range: 40A / Resolution: 0.01A / Accuracy: ±(3.0%+8)

Range: 400A / Resolution: 0.1A / Accuracy: ±(2.5%+6)

Range: 1000A / Resolution: 1A / Accuracy: ± (2.5%+6)

Resistance

Range: 400Ω / Resolution: 0.1Ω / Accuracy: ±(1.0%+5)

Range: 4kΩ / Resolution: 1Ω / Accuracy: ±(1%+5)

Range: 40kΩ / Resolution: 10Ω / Accuracy: ±( 1%+5)

Range: 400kΩ / Resolution: 100Ω / Accuracy: ±(1%+5)

Range: 4MΩ / Resolution: 1KΩ / Accuracy: ±(1.5%+5)

Range: 40MΩ / Resolution: 10KΩ / Accuracy: ±(3.0%+10)

Capacitance

Range: 40nF / Resolution: 10pF / Accuracy: ±(5.0%+5)

Range: 400nF / Resolution: 100pF / Accuracy: ±(5.0%+5)

Range: 4µF / Resolution: 1nF / Accuracy: ±(5.0 %+5)

Range: 40µF / Resolution: 10nF / Accuracy: ±(5.0%+5)

Range: 400µF / Resolution: 100nF / Accuracy: ±(5.0%+5)

Range: 4000µF / Resolution: 1µF Only refer to

Frequency

Range: 9.999Hz / Resolution: 0.001Hz / Accuracy: ±(1.0%+5)

Range: 99.99Hz / Resolution: 0.01Hz / Accuracy: ±(1.0%+5)

Range: 999.9Hz / Resolution: 0.1Hz / Accuracy: ±(1.0%+5)

Range: 9.999kHz / Resolution: 1Hz / Accuracy: ±(1.0%+5)

Range: 99.99kHz / Resolution: 10Hz / Accuracy: ±(1.0%+5)

Range: 999.9kHz / Resolution: 100Hz / Accuracy: ±(1.0%+5)

Range: 9.999MHz / Resolution: 1kHz For reference only

Duty cycle: 5%~95%

Short circuit beep: yes

Diode testing: yes

Data retention: yes

Backlight: yes

Automatic shut-down: yes

Flashlight function: yes

Power supply: 3 1.5V AAA batteries

Size: 243×87×44mm

Weight: 364g (including battery and case)
