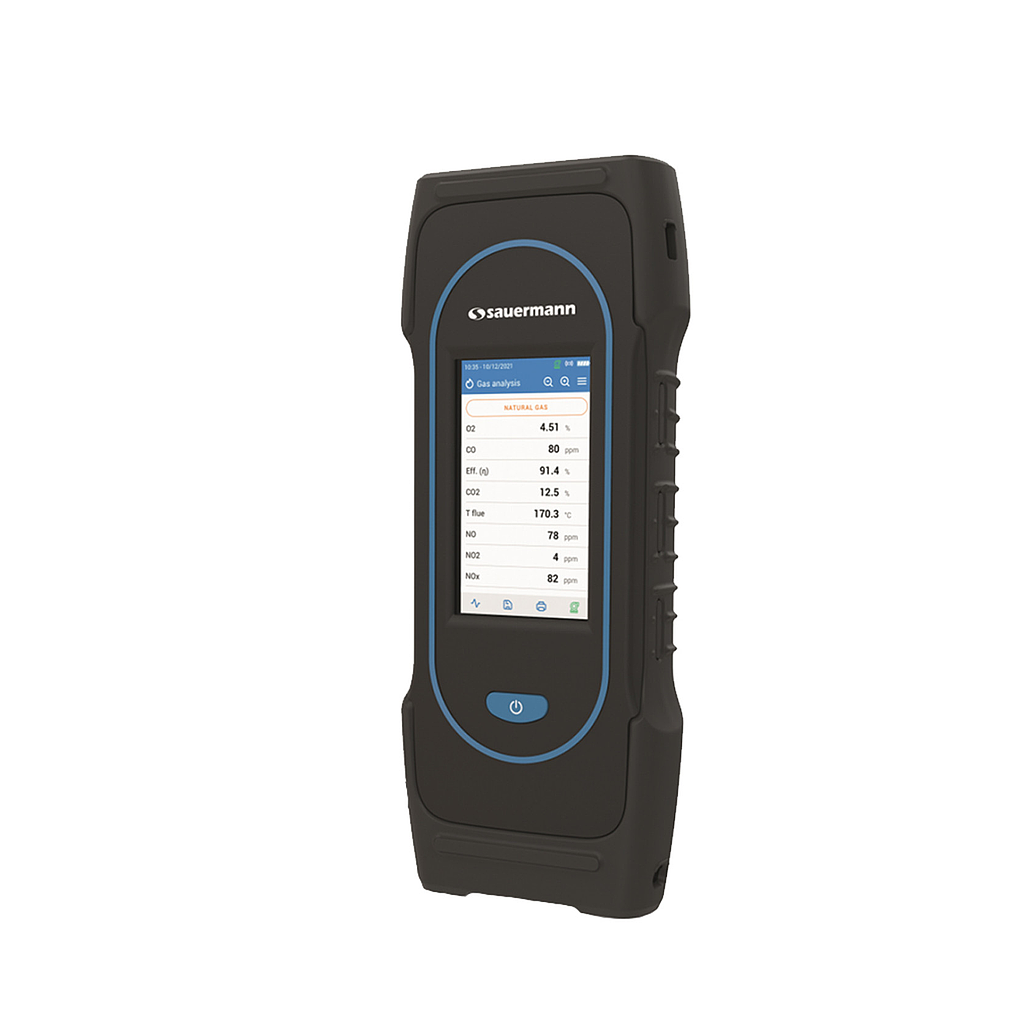

Sauermann Si-CA 230-2 Gas Industrial Emissions Analyzer Kit

Measuring Oxy O2:

Sensor: Electrochemical

Measurement range: 0 – 25%

Resolution: 0.01%

Accuracy: ±0.2% vol

Response time: T90 < 30s

Measuring Carbon Monoxide CO (H2 comp.):

Sensor: Electrochemical

Measurement range: 0 – 10000 ppm

Resolution: 1 ppm

Accuracy: ±8 ppm < 160 ppm ±5% rdg up to 2000 ppm ±10% rdg > 2000 ppm

Response time: T90 < 40s

CO (with dilution):

Sensor: Electrochemical

Measurement range: 100 - 50,000 ppm

Resolution: 1 ppm

Accuracy: ±10% rdg

Response time: T90 < 40s

Measuring CO2 (optional):

Sensor: Calculated

Measurement range: 0 - 99.9%

Resolution: 0.1%

Measuring NO (optional):

Sensor: Electrochemical

Measurement range: 0 – 5000 ppm

Resolution: 1 ppm

Accuracy: ± ±5 ppm < 100 ppm ±5% rdg > 100 ppm

Response time: T90 < 40s

Measuring NO2 (optional):

Sensor: Electrochemical

Measurement range: 0 – 1000 ppm

Resolution: 1 ppm

Accuracy: ±5 ppm < 100 ppm ±5% rdg > 100 ppm

Response time: T90 < 60s

Measuring Low NO (optional):

Sensor: Electrochemical (option 27521 (Low NO))

Measurement range: 0 – 300 ppm

Resolution: 0.1 ppm

Accuracy: ±1.5 ppm < 30 ppm ±5% rdg > 30 ppm

Response time: T90 < 40s

Measuring Low NO2 (optional):

Sensor: Electrochemical

Measurement range: 0 – 100 ppm

Resolution: 0.1 ppm

Accuracy: ±1.5 ppm < 30 ppm ±5% rdg > 30 ppm

Response time: T90 < 60s

Measuring NOx (optional):

Sensor: Calculated

Measurement range: 0 – 7500 ppm

Resolution: 1 ppm

Measuring Low NOx (optional):

Sensor: Calculated

Measurement range: 0 – 450 ppm

Measurement resolution: 0.1 ppm

Measuring SO2 (optional):

Sensor: Electrochemical

Measurement range: 0 – 5000 ppm

Resolution: 1 ppm

Accuracy: ±5 ppm < 100 ppm ±5% rdg > 100 ppm

Response time: T90 < 30s

Measuring Low SO2 (optional):

Sensor: Electrochemical

Measurement range: 0 – 100 ppm

Resolution: 0.1 ppm

Accuracy: ±1.5 ppm < 30 ppm ±5% rdg > 30 ppm

Response time: T90 < 30s

Measuring CxHy (HC) (optional):

Sensor: Pellistor

Measurement range: 0 - 5%

Resolution: 0.01%

Accuracy: ±5% over the entire range

Response time: T90 < 40s

Measuring H2S (optional):

Sensor: Electrochemical

Measurement range: 0 – 500 ppm

Resolution: 0.1 ppm

Accuracy: ±5 ppm < 100 ppm ±5% rdg > 100 ppm

Response time: T90 < 35s.

General features

Dimensions: 28 x 11.2 x 5.5 cm (11 x 4.3 x 2’’)

Weight: 825 g (30 oz)

Display: Color Touch Screen with Graphing; Size: 480 x 272 pixels

Keypad: 1 On-Off key

Material: ABS-PC

Protection: IP42

Connection

+ Wireless: class 2 range, range frequency from 2402 MHz to 2480 MHz with a transmit power of 1 dBm.

+ Range up to 15 m (50 ft), depending on smartphone radio strength.

+ Minimum required versions: Android 8.0, iOS 12.4, BLE 4.0 Low Energy

+ USB

Power supply:

+ Rechargeable battery, USB power supply

+ Li-Ion 5100 mA/h 3.6 V battery / Power supply voltage of the mains unit: 100-240 Vac, 50-60 Hz

+ Mains unit: 5 Vdc/2A

Battery: Battery life > 8 h; Charging time: Fully charge: < 6.5 h; 50%: < 2.5 h

Memory: Internal memory up to 2000 tests

Environmental conditions of use

Temperature: from -5 to 45 °C (23 to 113 °F),

Hygrometry: in non-condensing conditions (< 85% RH)

Maximum altitude: 2000 m (6561’)

Storage temperature: From -20 to 50 °C (-4 to 122 °F)

Languages: English, French, German, Spanish, Italian, Portuguese, Chinese

Ordering Information

Si-CA 230 Analyzer includes two gas sensors (O2, CO), a 300 mm probe rated to 800 °C (1472 °F) with 3 m dual hose, an ABS hard plastic carrying case, a rubber

holster, a water trap with filter, a charger with plug set, a USB cable, a quick start guide and a calibration certificate
