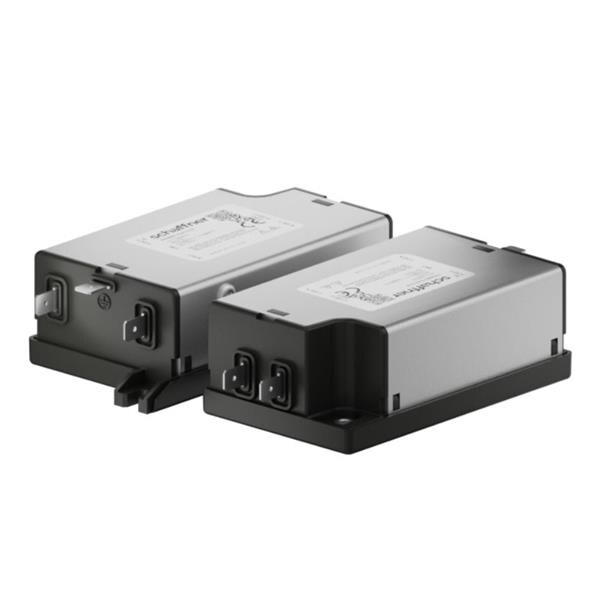

Schaffner FN2500-20-05-C13 Power Line Filters Single phase filter 1HU 20 A, fast-on connectors, 10nF

Name: Schaffner FN2500-20-05-C13 Power Line Filters Single phase filter 1HU 20 A, fast-on connectors, 10nF
Brand: Schaffner

ModelFN2500-20-05-C13

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Width: 59 mm

Height: 35 mm

Length: 97.7 mm

Approvals: CE, CQC, CSA, ENEC14, UR

Inductance: 2.4 mH

Capacitance: 0.01 uF

Filter Type: 1-Phase EMI/EMC Filter

Unit Weight: 300 g

Current Rating: 20 A

Mounting Style: Rack Mount

Voltage Rating: 277 VAC

Leakage Current: 870 uA

Termination Style: Faston

Operating Frequency: 0 Hz to 60 Hz

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
