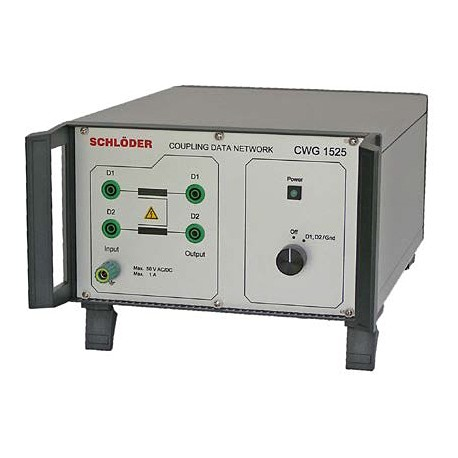

Schloeder CWG 1525 Coupling network Surge (50 V AC/DC, 1A)
Manufacturer: Schloeder Model: CWG 1525 - Request a Quotation
- Request a Quotation
- Contact
Nominal voltage AC: max. 50 V AC/DC
Nominal current IN: 2 x 1 A at room temperature max 40°C
Decoupling: 2 x 20 mH, current compensated chokes
Coupling resistor: 2 x 80 ohm
Coupling Device: (CD) Gas arrestors
Coupling Lines: (D1 + D2) to ground
Maximum pulse voltage: 1,2/50 µs 4.4 kV
High voltage (HV) input: Fischer HV-jack D105A039
Input coupling network: Laboratory jacks
Output coupling network: Laboratory jacks
Input electronic supply: IEC-plug, 230 V / 0,5 A on the rear
Ground connector additional via jack: on the front and rear
Room temperature: 0 - 40° C
Housing (H x W x D): 150 x 225 x 360 mm (3HE; 42TE)
Weight: approx. 5 kg
