Nominal voltage AC: max. 240 V, 50/60 Hz
Nominal voltage DC: max. 120 V

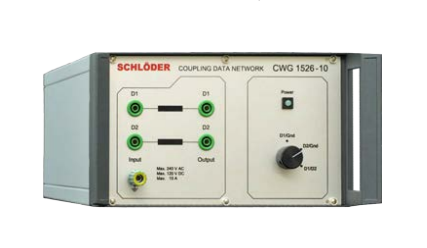

Nominal current IN CWG 1526-10: 2 x 10 A at TU= 40°Celsius
Serial choke: 2 x 20 mH
Coupling capacity C: 0,5 µF
Serial resistance R 40 Ω
Maximum pulse voltage 1,2 / 50 µs 4.4 kV
Coupling paths to be selected D1 - D2, D1 - GND, D2 - GND
High voltage (HV) input Fischer HV-jack D105A039
Input coupling network: Laboratory jacks
Output coupling network: Laboratory jacks
Input electronic supply: IEC-plug, 230 V / 0,5 A on the rear
Ground connector additional via jack: on the front and rear
Operation temperature 0 up to 40° Celsius
Housing (H x W x D): 150 x 225 x 360 mm (3HE; 42TE)
Weight, approx.:10.4 kg
