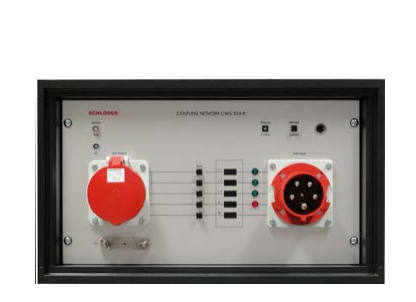

Schloeder CWG 524 - B Coupling network Burst (230 / 400 V, 4x60 A)

Nominal voltage: max. 230 / 400 V, 50-60 Hz

Nominal current IN: 4 x 60 A at Tamb = 30°C

Serial choke 5 x 100 – 150 µH

Coupling capacity: C Burst: 33 nF

Surge: phase - PE 9 µF / 10 Ω

phase - phase: 18 µF / 2 Ω

HV input connection Burst: Fischer HV-jack D103A023

Surge: Fischer HV-jack D105A039

Input coupling network: CECON 63 A

Output coupling network:CECON 63 A

Input electronic supply: IEC-plug, 230 V / 1A, on the rear side

Operation temperature: 0 up to 30° C

Housing (L x B x T): 6 HE (19’’ housing)

Weight: app. 30 kg
