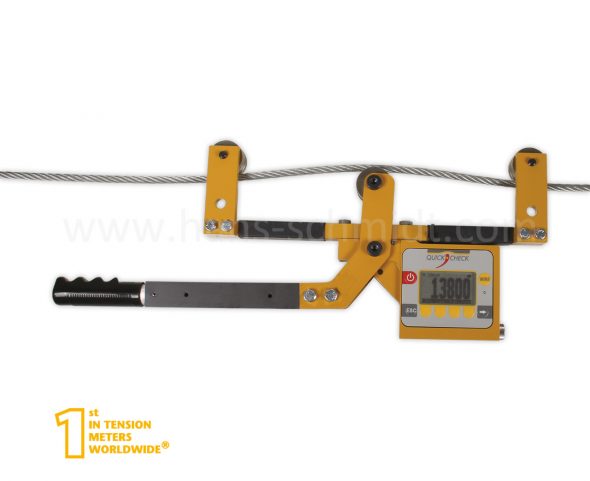

SCHMIDT CTM-2000 Tension Meter (10 kN)

Measuring Range (in kN): 10 kN

Measuring Range (in lbf): 2000 lbf

Measuring Range (in kgf): 1000 kgf

Accuracy: ± 3 % full scale

Measuring unit: N, lbf, kgf switchable

Material diameter: 4.75 – 25.4 mm (3/16 – 1 inch)

Loading Error: Rope elongation of only 2 mm

Display information: Unit, wire, shaver and battery status

Display: LCD 2.54 cm high, full text prompts

Number of calibrations: Up to 20 calibrations can be saved

Resolution:

+ CTM-2000: low (50 N/10 lbf/5 kgf), middle (20 N/5 lbf/2 kgf), high (10 N/2 lbf/1 kgf)

Output Signal: RS-232

Power supply: 2 batteries, size AA (approx. 120 h of use)

Temperature range: -20 up to +70 °C

Dimensions: 59x 25x 8 cm

Weight, net (gross): Approx. 5 kg (11 kg)

Delivery Includes: carrying case including calibration for one material, roller set (as requested), operating instructions in English
