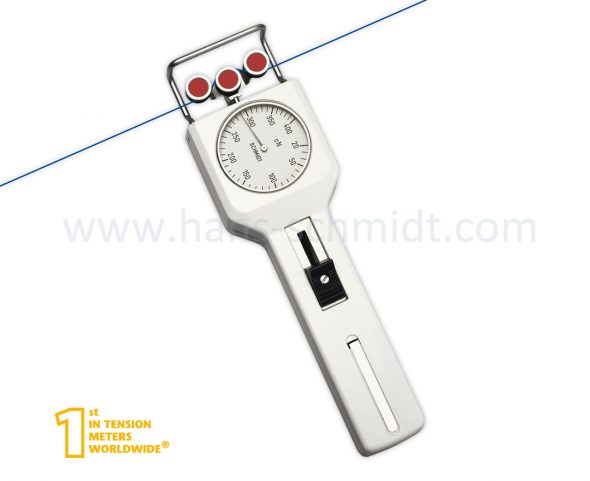

SCHMIDT DN1-5000 Tension Meter (400 – 5000 cN)

Measuring Range: 400 – 5000 cN

Measuring head Width*: 116 mm

SCHMIDT Calibration Material **: PA: 0.80 mm Ø

Material Thickness Compensator: Yes

Calibration: According to SCHMIDT factory procedure

Accuracy: ±1 % full scale or ±1 graduation on scale

Scale diameter: 54 mm

Temperature range: 10 – 45 ºC

Air humidity: 85 % RH, max.

Housing material: Die-cast aluminium

Dimensions: See dimensions

Weight, net (gross): approx. 700 g (1200 g)

Other tension ranges and measuring head widths available on request.

Other units of measure available – g or kg.

* Depending on model, either width of filament guide or outer distance between outside guide rollers

** Suitable for 95 % of applications – PA = Polyamide Monofilament

*** deviating measuring head width with Code V1

Delivery Includes: carrying case, operating instruction in German or English (as requested), Certificate of compliance with the order 2.1 according EN 10204 free of charge
