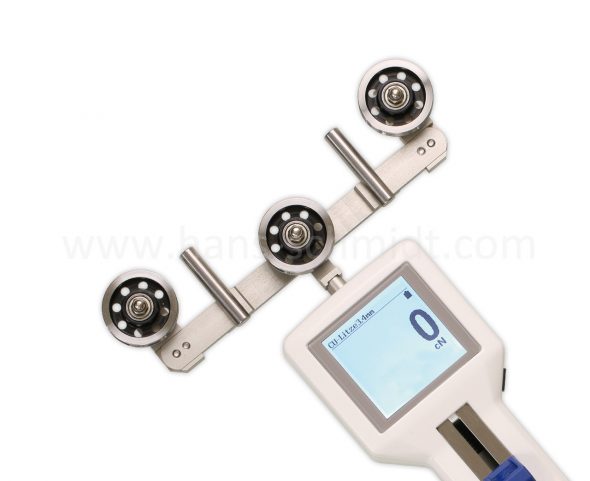

SCHMIDT DTSL-2500 Tension Meter (150 – 2500 cN)

Measuring Range: 150 – 2500 cN

Resolution: 1 cN

Measuring Head Width*: 185 mm

SCHMIDT Calibration Material: With convenient material for each roller design or customer supplied material

Calibration: According SCHMIDT factory procedure

Accuracy:

+ From 5 % up to 100 % full scale: ± 3 % full scale and ± 1 digit

+ Remaining range, device with tension range 50 daN and 60 daN and customer supplied material: ±5 % full scale and ±1 digit

Memory for material curves: 1 for SCHMIDT calibration plus 4 for customized calibrations

Measuring units:

+ Force (switchable): cN, daN, g, kg, N, lb

+ Thickness (switchable): mm, inch

Overrange: Approx. 10 % full scale, without accuracy guarantee

Overload protection: 100 % full scale

Measuring principle: Strain gauge bridge

Signal processing: Digital, 16 bit A/D converter

Measuring frequency: Max. 1 kHz (1000 measurings/sec), intern 8 kHz

Measuring roller deflection: Max. 0.2 mm

Display: Graph LCD

3 different displays: Numeric, Numeric with graph (time-tension); X-Y-diagram

Display update rate: Approx. 2 times per second

Memory: MIN, MAX, PEAK, AVG and LAST

Damping: Adjustable electronic damping (averaging)

Cal. Adjustment: ± 10 steps in 1 % increment

Auto power off: Approx. 3 minutes of non-use

Temperature coefficient: Gain: less than ± 0.01 % full scale /°C

Zero point: Less than ± 0.03 % full scale /°C

Temperature range: 10 – 45 °C

Air humidity: 85 % RH, max.

Power supply: LiPo accumulator (approx. 40 h continuous use), charging time approx. 3 1/2 h, USB AC adapter 100 – 240 V AC with 4 adapters (EU/USA/UK/AUS-NZ)

Housing material: Die-cast aluminium

Housing dimensions: See Dimensions

Weight, net (gross): Approx. 940 g (1620 g)

* Outer distance between outside guide rollers

Delivery Includes: carrying case, accumulator and AC adapter with 4 adapters (EU/US/UK/AUS-NZ), USB cable, Certificate of compliance with the order 2.1 according EN 10204 free of charge, instruction manual in German or English (as requested)
