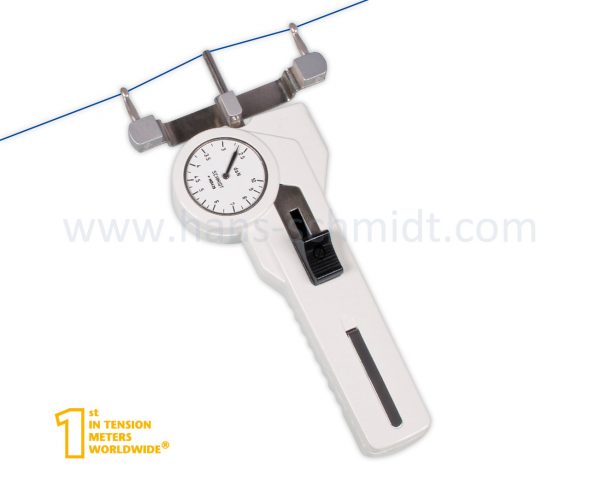

SCHMIDT DXH-5000 Tension Meter (400 – 5000 cN)

Measuring Range: 400 – 5000 cN

Measuring Head Width: 116 mm

SCHMIDT Calibration Material*: PA: 0.8 mm Ø

Calibration: According to SCHMIDT factory procedure

Accuracy: ±1 % full scale or ±1 graduation on scale

Scale diameter: 41 mm

Temperature range: 10 – 45 ºC

Air humidity: 85 % RH, max.

Housing material: Die-cast aluminium

Dimensions: See dimensions

Weight, net (gross): approx. 470 g (1000 g)

Other tension ranges available on request.

Other units of measure available, such as g.

* Suitable for 95 % of applications – PA = Polyamide Monofilament

Delivery Includes: carrying case, operating instruction in German or English (as requested), Certificate of compliance with the order 2.1 according EN 10204 free of charge
