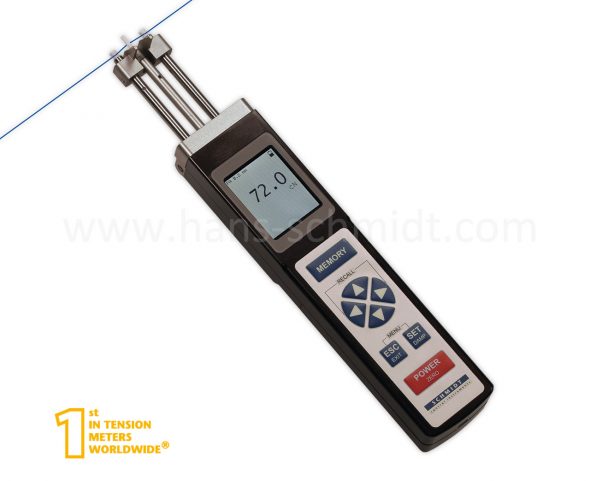

SCHMIDT ETPX-100 Tension Meter (0.3 – 100.0 cN)

Measuring Range: 0.3 – 100.0 cN

Resolution: 0.1 cN

Measuring Head Width*: 22 mm

SCHMIDT Calibration Material**: PA: 0.20 mm Ø

Calibration: According SCHMIDT factory procedure

Accuracy: ±1 % full scale ±1 digit or better (typical ±0.5 % full scale)

Measuring units: cN, g, N or lb, switchable

Overrange: Approx. 10 % full scale, without accuracy guarantee

Overload protection: 200 % full scale

Measuring principle: Strain gauge bridge

Measuring roller deflection: Max. 0.5 mm

Signal processing: Digital

Damping: Adjustable electronic damping, averaging

Sampling rate internal: approx. 1 kHz

Sampling rate: 200 Hz, 2 Hz: AVG, MIN, MAX

Display: Colour-TFT 128 x 160

Display update rate: Approx. 2 times per second

Memory: Last, average, MAX and MIN

Temperature coefficient: Gain: less than ± 0.01% full scale/°C

Temperature range: 10 – 45 ºC

Air humidity: 85 % RH, max.

Auto power off: Approx. after 3 minutes of non-use

Power supply: LiPo accumulator (approx. 20 h continuous use, charging time approx. 3.5 h), USB AC adapter 100 – 240 V AC with 4 adapters (EU/USA/UK/AUS-NZ)

Housing material: Aluminium

Dimensions: See dimensions

Weight, net (gross): Approx. 310 g (1220 g)

Additional specifications of model ETX USB

Output signal: USB

Memory: Max. 60000 at 999 measuring periods

Memory Modes: 5 memory modes with statistical evaluation and PEAK capture

*  Outer distance between outside guide rollers

** Suitable for 95 % of applications – PA = Polyamid-Monofile, calibrated with a running filament approx. 60 m/min

Delivery Includes: carrying case, USB AC adapter with 4 adapters (EU/USA/UK/AUS-NZ), USB cable, a screwdriver and flat wrench, operating instruction in German or English (as requested), Certificate of Compliance with the order 2.1 according EN 10204 free of charge. Tension meter ETX includes additionally software »Tension Inspect 3«
