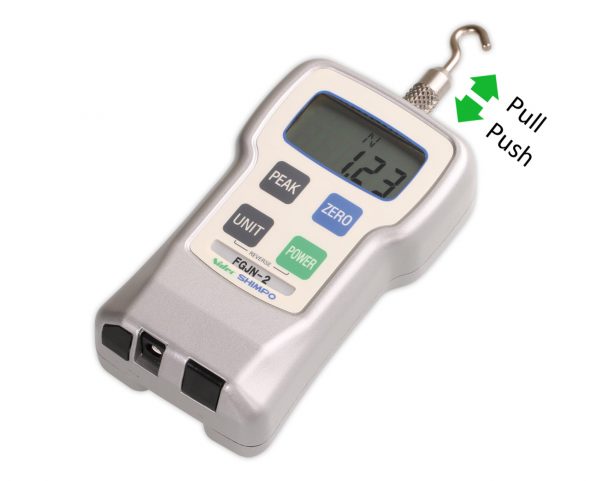

SCHMIDT FGJN-2 Force Gauge (0 – 20.00 N)

Capacity: 0 – 20.00 N

Resolution: 0.01 N

Capacity kgf: 0 – 2.000 kgf

Capacity lbf: 0 – 4.400 lbf

Measuring principle: Bidirectional force sensor with strain gauge

Displacement: 0.5 mm

Accuracy: ±0.3 % full scale, ±1 digit

Measuring unit: N, gf (kgf), ozf (lbf)

Display: 4 digit LCD, 12 mm high; selectable update time: 1000 ms (standard), 500 ms, 333 ms, 200 msc, 100 ms, 50 ms

Overload capacity: 200 % full scale, display flashes at 120 % full scale

Plug gauge: M6 (M4) male

Zero adjustment: 10 % full scale

A/D converter: 12 bit

Temperature range: 5 – 45 °C

Air humidity: 85 % RH, max.

Mounting threads for test stand: 4 x M4, Depth 6 mm

Housing material: Die-cast aluminium

Power supply: Rechargeable NiMH batteries (approx. 8 h continuous use, approx. 8 h charging time), and AC adapter 100 – 240 V with 4 Adapters (EU/USA/UK/AUS-NZL)

Housing material: 147 x 75 x 38 mm (LxWxH)

Weight, net (gross): Approx. 450 g (1000 g)

Delivery Includes: carrying case, standard accessories, AC adapter with 3 adapters (EU/USA/UK/AUS-NZL),  Certificate of Compliance with the order 2.1 according EN 10204, operating instruction in English
