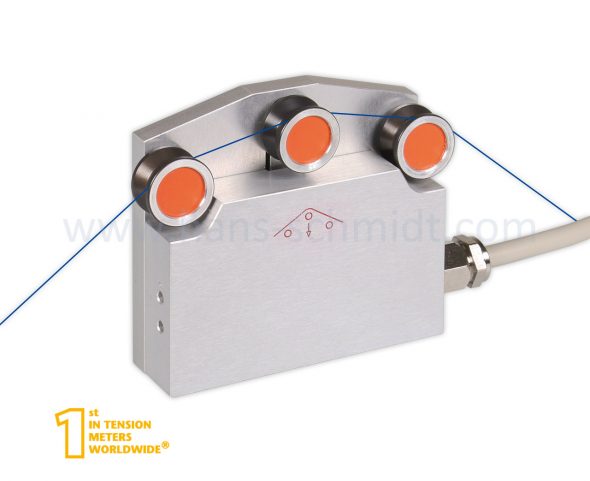

SCHMIDT MBZD-200 Tension Sensor (0 – 200 cN)

Tension Range: 0 – 200 cN

Measuring Head Width*: 70 mm

Schmidt Calibration Material**: PA: 0.20 mm Ø

Calibration: According to SCHMIDT factory procedure

Accuracy:  ±2 % full scale and ±1 digit;  Other calibration material: ±3 % full scale or better

Overload protection: 100 % of tension range

Measuring principle: Strain gauge bridge

Measuring roller deflection: Max. 0.5 mm

Natural frequency: Approx. 500 Hz, depending on tension range

Signal processing: Analog

Temperature drift: Better ±0.05 % Full Scale/ºC

Output signal:

+ Standard: 0 – 1 V DC (analog)

+ Option: Option: 0 – 10 V DC (analog) or mV/V (DMS)

Output: Shielded cable (3 m) with open ends

Damping (fg): Standard (analog): 30 Hz (other values on request)

Temperature range: 10 – 45 ºC

Air humidity: 85 % RH, max.

Power supply: +15…24 V DC, max. 21 mA regulated;  Code A10: max. +5 V DC, max. 20 mA regulated

Housing material: Aluminium

Dimensions: 70 x 63 x 18 mm (LxWxH)

Weight, net (gross): With cable approx. 200 g (300 g)

Other measuring units available, such as g.

* Outer dimensions of the housing

** Suitable for 95 % of applications PA = Polyamide Monofilament

Delivery Includes: Tension sensor  with transport packaging, connecting cable, operating instruction in german or english (as requested), Certificate of Compliance with the order 2.1 according EN 10204 free of charge
