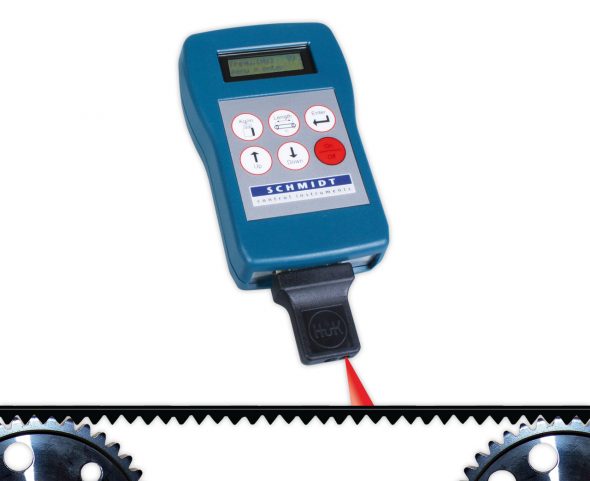

SCHMIDT RTM-400 Belt Tension Meter (10 – 800 Hz)

Measuring range: 10 – 800 Hz

Digital sampling error: < 1 %

Indicator error: ±1 Hz

Total error: < 5 % of measuring value

Adjustable Hz (Frequency) or

measuring units: N, lbf (Strand force)

Measuring distance: 3 – 20 mm

Display: 2 line LCD, 16 characters per line

Languages: 10 languages (German, English, French, Italian, Spanish, Portuguese, Swedish, Norwegian, Danish, Finnish)

Input ranges: Free strand length: up to 9.99 m; Belt mass: up to 9.999 kg/m

Temperature ranges: Operation: +10 °C … 50 °C, Transport: -5 °C … +50 °C

Air humidity: 85 % RH, max.

Power supply: 9 V – Battery

Housing: Plastic (ABS)

Dimensions: 126 x 80 x 37 (LxWxH)

Weight net (gross): Approx. 170 g (660 g)
