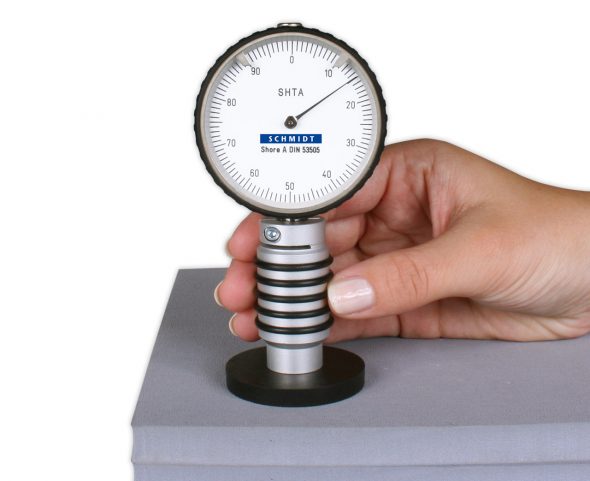

SCHMIDT SHTA Shore Durometer (10 – 90 Shore A)
Manufacturer: SCHMIDT Model: SHTA - Contact
Indentor: Cone 35°, Ø 1.25 mm
Depth of indentation: 0 – 2.5 mm
Typical applications: Soft rubber, elastomers, natural rubber, soft PVC, leather, etc.
Accuracy: ± 1 hardness unit
Application range: 10 – 90 Shore A Units
Standard: DIN 53505, ISO 48-4, ISO 868, ASTM D 2240
Measuring spring force: 0.55 – 8.065 N
Test pressure*: Approx. 12.5 N
Display range: 0 – 100 Shore A units
Scale diameter: 54 mm
Working face: 18 mm Ø
Housing diameter: 24 mm Ø
Weight, net (gross): Approx. 200 g (300 g)
Dimensions: 28 x 58 x 110 mm (LxWxH)
