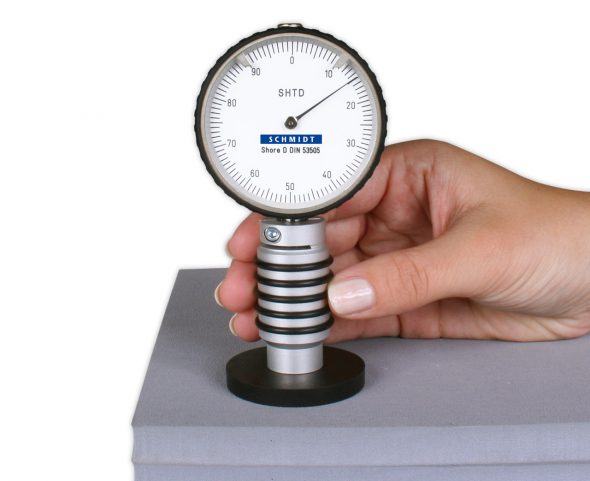

SCHMIDT SHTD Shore Durometer (10 – 90 Shore D)
Manufacturer: SCHMIDT Model: SHTD - Contact
Indentor: Tapered pin 30°, Ø 1.25 mm
Depth of indentation: 0 – 2.5 mm
Typical applications: Hard rubber, rigid thermoplast, resopal, hard plastic materials
Accuracy: ± 1 hardness unit
Application range: 10 – 90 Shore D
Standard: DIN 53505, ISO 48-4, ISO 868, ASTM D 2240
Measuring spring force: …4.45 – 44.5 N
Display range: 0 – 100 Shore D units
Scale diameter: 54 mm
Working face: 18 mm Ø
Base plate: 24 mm Ø
Weight, net (gross): Approx. 200 g (300 g)
Dimensions: 28 x 58 x 110 mm (LxWxH)
