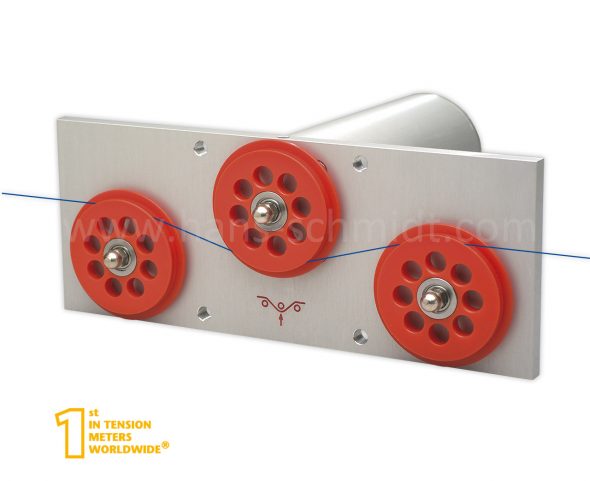

SCHMIDT TSL-1000 Tension Sensor (0 – 1000 cN)

Tension Range: 0 – 1000 cN

Measuring Head Width*: 150 mm

SCHMIDT Calibration Material**: PA: 0.30 mm Ø

Calibration: According to SCHMIDT factory procedure

Accuracy: ±1 % full scale and ±1 digit; Other calibration material: ±3 % full scale or better

Overload protection: 100 % of tension range

Measuring principle: Strain gauge bridge

Measuring roller deflection: Max. 0.5 mm

Natural frequency: Approx. 500 Hz, depending on tension range

Signal processing: Analog

Temperature drift: Less than ±0.05 % full scale/ºC

Output Signal:

+ Standard: 0 – 1 V DC (analog) impedance: ≥ 5 kΩ

+ Option: 0 – 10 V DC (analog), 4 – 20 mA (current) or mV/V (DMS)

Damping (fg): Standard: 30 Hz (other values on request)

Temperature range: 10 – 45 ºC

Air humidity: 85 % RH, max.

Power supply:  +15…24 V DC, 21 mA regulated Code A3: max. 50 mA regulated; Code A10: max. +5 V DC, max. 20 mA regulated

Housing material: Aluminium

Dimensions: See dimensions

Weight, net (gross): Approx. 340 g (440 g)

Other tension ranges and measuring head widths available on request.

Other measuring units available, such as g.

* Outer dimensions of front plate

** Suitable for 95 % of applications PA = Polyamide Monofilament

Delivery Includes: Tension sensor TSW with transport packaging, operating instruction in german and english (as requested), Certificate of Compliance with the order 2.1 according EN 10204 free of charge
