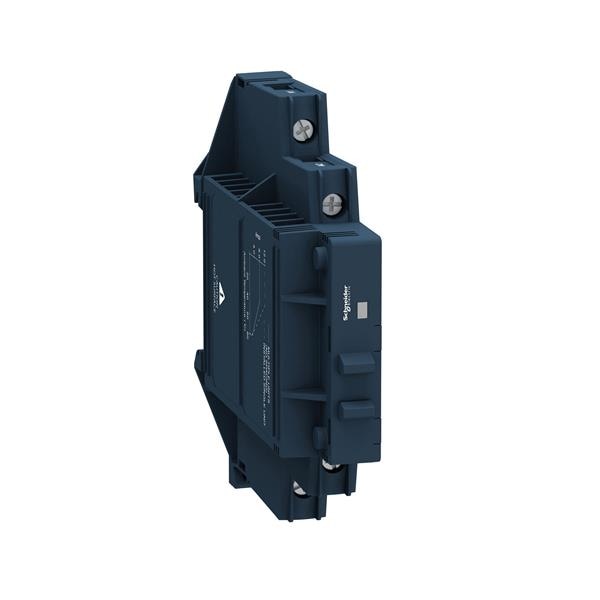

SCHNEIDER SSM1A112BD SSR 12A 24-280VAC ZC 4-32VDC SSR 1
Manufacturer: SCHNEIDER Model: SSM1A112BD - Contact
Width: 18 mm
Height: 90.3 mm
Length: 83.7 mm
IP Rating: IP20
Output Type: SCR
Unit Weight: 90 g
REACH - SVHC: Details
Input Current: 9 mA to 11 mA
Mounting Style: DIN Rail Mount
Relay Contact Form: 1 Form A (SPST-NO)
Load Current Rating: 12 A
Load Voltage Rating: 24 VAC to 280 VAC
Control Voltage Range: 4 VDC to 32 VDC
Maximum Operating Temperature: + 80 C
Minimum Operating Temperature: - 30 C
