Schwarzbeck CCP 9225 Capacitive Coupling Plate (DC – 30 MHz, ≈26 pF)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

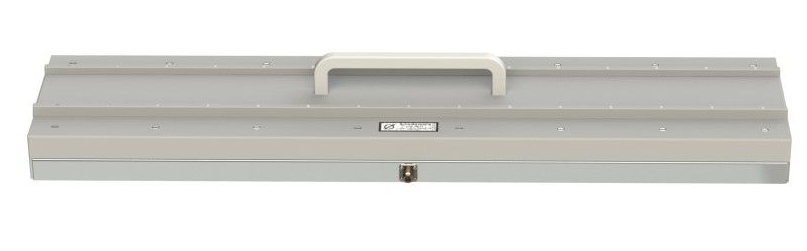

Product image

Schwarzbeck CCP 9225 Capacitive Coupling Plate (DC – 30 MHz, ≈26 pF)

ManufacturerSchwarzbeck(View more products from this manufacturer)

ModelCCP 9225

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Capacitance between reference conductor and coupling plate: ≈26 pF

Capacitance between coupling plate and ground: ≈280 pF

Frequency range: DC – 30 MHz

Material: Aluminium

Weight: 12.5 kg

Septum dimensions: 1000 × 140 mm

Spacing between wire and septum: 10 mm

Spacing between base plate and septum: 15 mm

Overall dimensions: 1050 × 250 × 90 mm

Connector: N-female

Recommended accessories: VHIC 9260

Datasheet
