Schwarzbeck CU 50561-1 Coupling Unit (1.6 … 30 MHz) | EMIN.COM.MM

EMI and EMC Test System
Schwarzbeck CU 50561-1 Coupling Unit (1.6 … 30 MHz)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

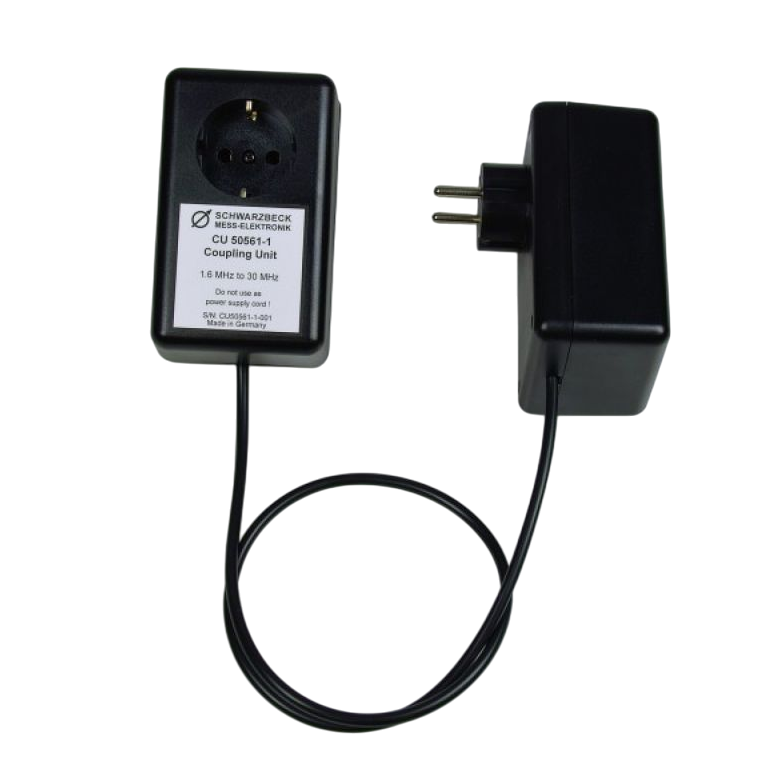

Product image

Schwarzbeck CU 50561-1 Coupling Unit (1.6 … 30 MHz)

ManufacturerSchwarzbeck(View more products from this manufacturer)

ModelCU 50561-1

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Frequency range: 1.6 ... 30 MHz

Symmetrical attenuation: 40 dB ±1.5 dB (@ 25 Ω)

Max RF voltage: 10 V

Dielectric strength each wire: >1000 VDC

Test voltage between lines: >1000 VDC

Max. power rating: 1000 VA

Housing material: Kunststoff (plastic)

Housing dimensions: 68 × 112 × 53 mm

Cable length: ~800 mm

Weight: ~310 g

Connector Mains plug: CEE 7/7

Connector Mains jack: CEE 7/4

Datasheet
