Schwarzbeck HHS 3D 5213-50 Helmholtz Coils (0 … 20 kHz, 390 A/m, 5 min)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

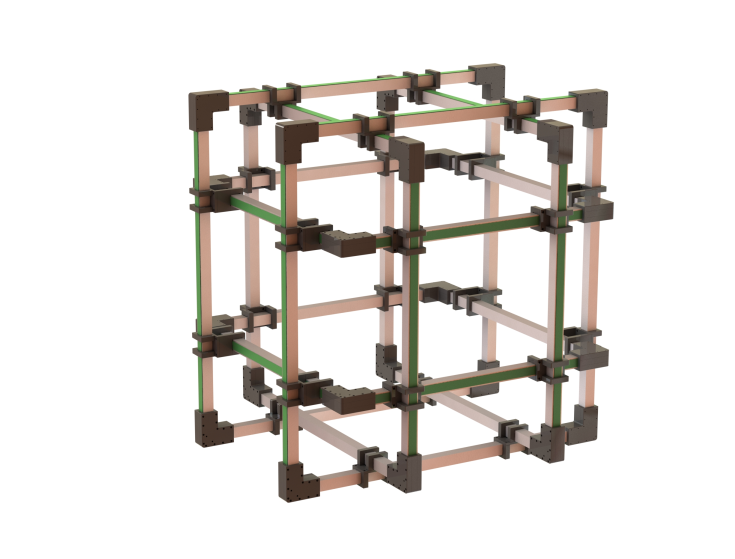

Product image

Schwarzbeck HHS 3D 5213-50 Helmholtz Coils (0 … 20 kHz, 390 A/m, 5 min)

ManufacturerSchwarzbeck(View more products from this manufacturer)

ModelHHS 3D 5213-50

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Frequency Range: 0 … 20 kHz

Number of turns (per Coil): 50

Maximum Coil Current: 8 A, 5 min.

Nominal Coil Current: 5 A continuous

Maximum Magnetic Field Strength: 390 A/m, 5 min

Nominal Magnetic Field Strength: 240 A/m continuous

Resonant Frequency (per Coil): > 30 kHz

Dimensions: 1.4 m × 1.4 m × 1.3 m

Weight: approx. 85 kg

Datasheet
