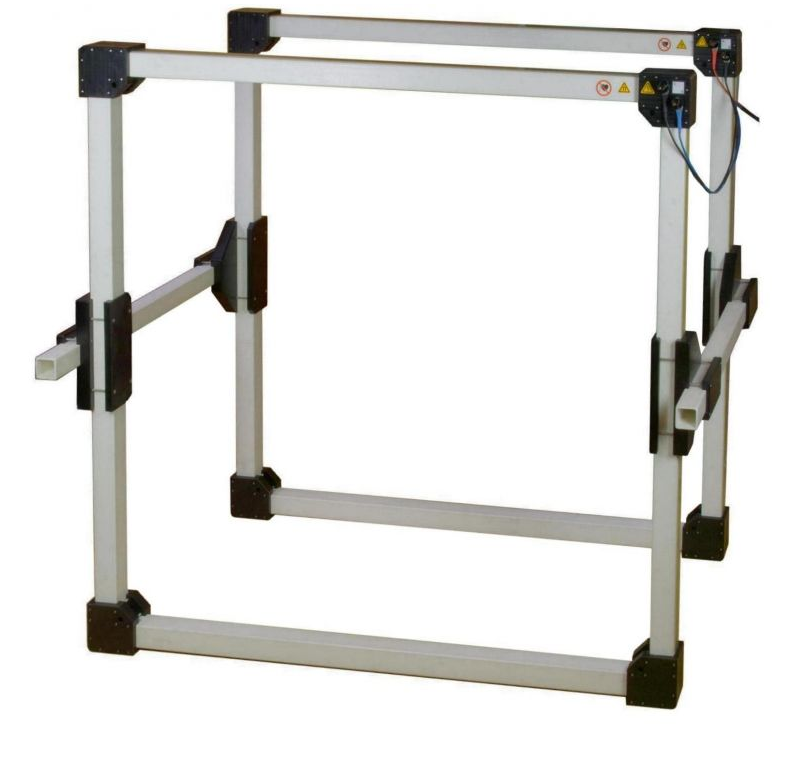

Number of turns (per Coil): 10
Maximum Coil Current: 20 A, 5 min.
Nominal Coil Current: 10 A continuous
Coil Distance: 300 mm, 5 min.
Maximum Magnetic Field Strength: 300 A/m, 5 min.
Nominal Magnetic Field Strength: 150 A/m continuous
Magnetic Field Strength, 1 A Coil Current: 15 A/m (Coil Dist. 0.4 m)
Current required for 10 A/m: 0.67 A (Coil Dist. 0.4 m)
Mechanical Dimensions: 1.0 m × 1.0 m × 0.63 m
Maximum Coil Separation: 0.58 m
Coil Separation acc. IEC 1000-4-8: 0.4 m
Coil Separation for best uniformity: 0.57 m
Usable Frequency Range: 0 – 150 kHz
Inductance (per coil): 0.36 mH
Resistance (per coil): 0.3 Ω
Resonant Frequency (Pair of Coils): > 600 kHz
Weight: 10 kg
