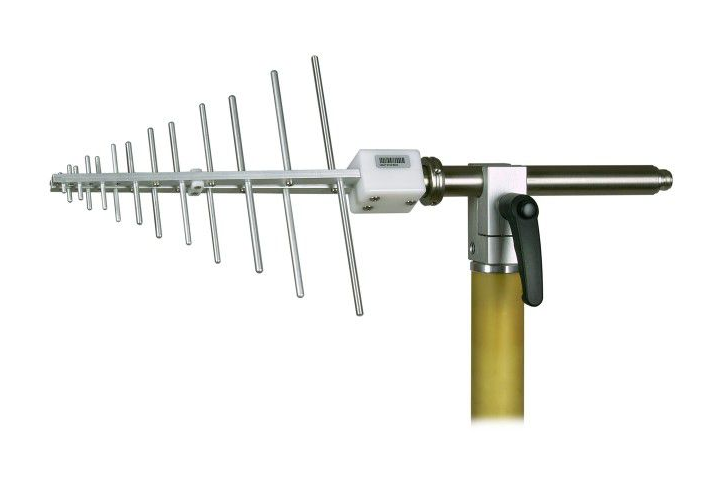

Nominal Frequency Range: 800 MHz ... 5 GHz
Usable Frequency Range: 650 MHz ... 8 GHz
Nominal Impedance: 50 Ω
Standing Wave Ratio (SWR) typical: <1.5
Isotropic Gain: 4 ... 7 dBi
Antenna Factor: 23 ... 38 dB/m
Front to Back Ratio: 20 dB
Cross Polarisation:>20 dB (800 MHz ... 2 GHz)
3 dB Beamwidth typ. (E-Plane): 50°-75°
3 dB Beamwidth typ. (H-Plane): 90°-120°
Max. Input Power: 300 W @ 1 GHz / 150 W @ 5 GHz
Connector: N-Connector female
Mount: 22 mm Tube, Indexing Ring
Width × Length × Thickness: 200×455(200)×40 mm
Weight: 0.55 kg
