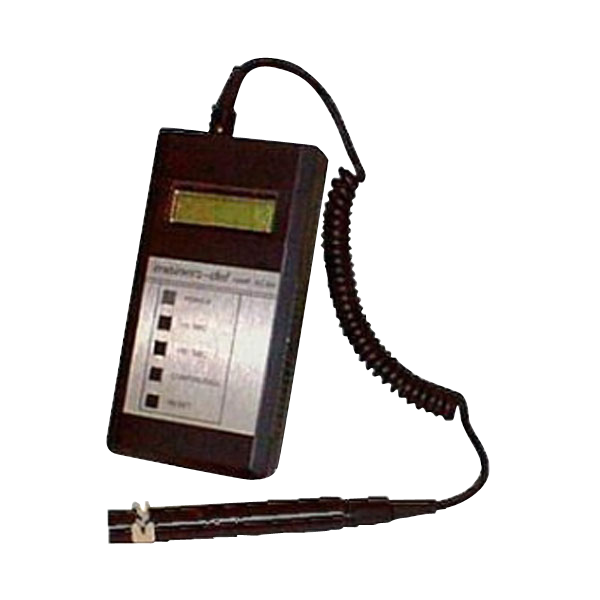

SDL Atlas Y103C Hair Scan Portable Yarn Hairiness Monitor (3 mm)

Application: Monitoring the quality of spun yarn or detecting broken filaments

Detection Method: Infrared detecting head

Power Supply: Battery-powered

Battery Life: Typically 10 hours

Display: Two-line LCD

Measurement Time: 5–95 seconds, selectable in increments of 5 or 10 seconds

Detection Mode: Continuous mode for broken filament detection

Measuring Head: Can be fixed permanently in the threadline

Standard Measuring Head: 3 mm

Optional Measuring Head: 1–5 mm, specified in increments of 0.1 mm

Weight: 0.5 kg/1 lb

Dimensions: 80 mm (w) x 35 mm (d) x 160 mm (h) / 3 in (w) x 1.5 in (d) x 6.5 in (h)

Datasheet
