Seaward PR15D/PH3 High Voltage Phasing Units (0~8.6kV, 15kV, 10V, 0.5mA)

Indicator Type: Digital Reading PR15/D Digital Leg and Phasing leg

Maximum System voltage: 15kV

Maximum Voltage to earth: 8.6kV

Measuring Range: 0.00kV - 8.6kV

Resolution: 10V

Sensitivity: AC/DC

Circuit current (IEC 61234-2): 0.5mA nominal @15kV

Dielectric leakage current (IEC 61234-2): 7µA nominal @ 18kV

Length (mm): 600

Diameter (mm): 25

Handle length (mm): 235

Hand guard height (mm): 23.5

Contact Electrode Type: Domed

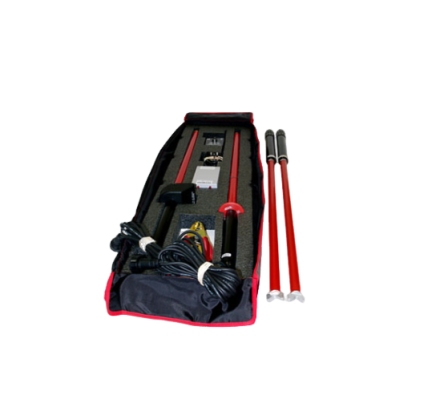

Accessories included:

1 Proving Unit

1 Battery Charger

2 Overhead Line Extensions (1.5m)

All leads and instructions

Supplied with carrying case

Bent adaptors available for use with switch gear
