Open Circuit Voltage Measurement (PV Terminals)
Display Range: 0.0V DC – 1000V DC
Measuring Range: 5.0V DC- 1000V DC
Resolution: 0.1V DC maximum
Accuracy: ± (0.5 % + 2 digits)
Enunciators: DC voltage polarity correct or reversed
Earth Continuity Resistance Measurement (4mm Terminals)
Test Voltage Open Circuit: >4V DC, nominal
Test Current into: 2 Ω >200mA
Display Range: 0.00Ω - 199Ω
Measuring Range (EN 61557-4): 0.05Ω - 199Ω
Resolution: 0.01Ω maximum
Accuracy: ± (2% + 5 digits)
Test Leads Zero: Zero up to 10Ω, by zero button
Visible Warning: ≥30V AC or DC at inputs
Circuitry Protection: Test inhibited if ≥30V AC or DC at inputs
Repeat tests as per IEC61557-4: Approx. 4000 1 second test
Rpe Voltage Measurement (4mm Terminals)
Display Range: 30V - 440V AC/DC
Voltage Measuring Range:
30V - 440V DC
30V - 440V AC 50-60Hz
Resolution: 1V
Accuracy: ± (5% + 2 digits)
DC Operating Power (via AC/DC Current Clamp and PV Terminals)
Display Range: 0.00kW - 40kW
Measuring Range: 0.50kW - 40kW
Resolution: 0.01kW
Accuracy: ± (5% + 5 digits)
Connectivity
USB download to PC (CSV format)
Wireless “Solarlink TM” to Survey 200R (range ~30m/100ft)
Short Circuit Current Measurement (PV Terminals)
Display Range: 0.00A DC - 15.00A DC
Measuring Range: 0.50A DC - 15.00A DC
Maximum Power: 10kW
Resolution: 0.01A DC maximum
Accuracy: ± (1% + 2 digits)

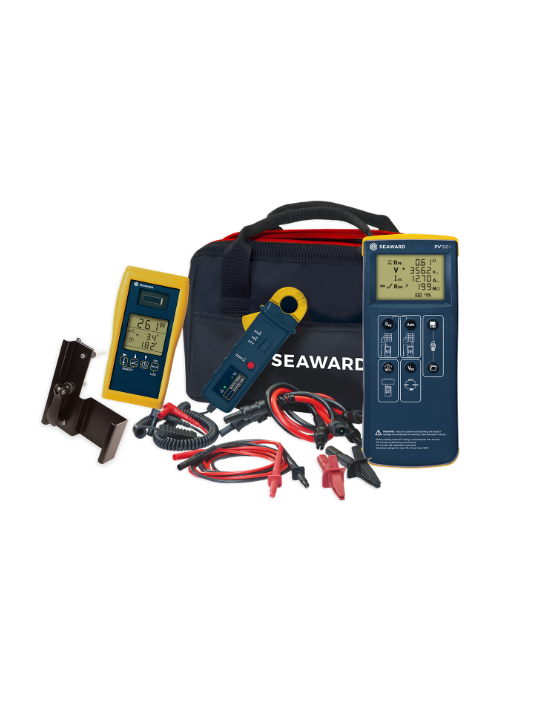

Included in the Kit:
Seaward Solar Installation PV150+ instrument.
SolarCert PC Software.
2 x MC4 test lead adaptors.
2 x Combiner box test probes and detachable alligator clips (MC4).
2 x Test leads, with test probes and detachable alligator clips (4mm).
AC/DC current clamp.
Solar Survey 200R irradiance meter and temperature probe.
Solar Survey 200R mounting bracket.
Rugged carry bag.
Quick Start Guide.
UKAS Calibration Certificate (PV150+)
