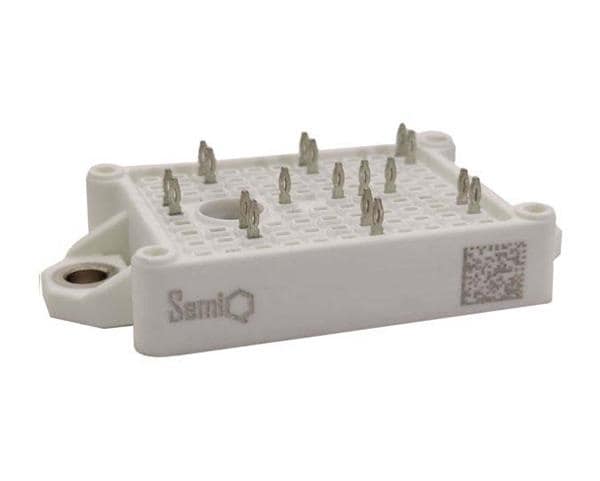

SemiQ GCMX020A120B2B1P Half-Bridge SiC 1200V 20mohm MOSFET Half-Bridge Module
Manufacturer: SemiQ Model: GCMX020A120B2B1P - Contact
Fall Time: 16 ns
Rise Time: 8 ns
Technology: SiC
REACH - SVHC: Details
Mounting Style: Screw Mount
Transistor Polarity: N-Channel
Pd - Power Dissipation: 385 W
Vgs - Gate-Source Voltage: - 5 V, + 20 V
Typical Turn-On Delay Time: 22 ns
Typical Turn-Off Delay Time: 42 ns
Id - Continuous Drain Current: 102 A
Maximum Operating Temperature: + 175 C
Minimum Operating Temperature: - 40 C
Rds On - Drain-Source Resistance: 19 mOhms
Vds - Drain-Source Breakdown Voltage: 1.2 kV
Vgs th - Gate-Source Threshold Voltage: 1.8 V
