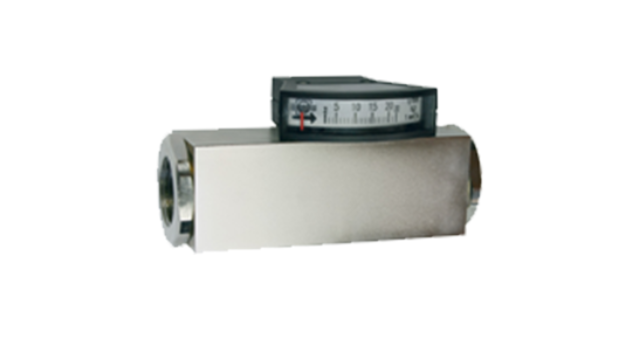

Senseca H1O1 Flow switch (0.4..1.6 bar)

Switch: without

Nominal width: DN 8..25

Process connection female thread G 1/4..G 1 (further process connections available on request)

Display range: 0.1..85 l/min (for details see table "Ranges")

Pressure loss: 0.4..1.6 bar at Qmax  to 100 l/min

Tolerance: ±5 % of full scale value

Pressure resistance: PN 200 bar

Media temperature: -20..+120 °C

Ambient temperature: -20..+70 °C

Media: water (oils, gases and aggressive media available on request)

Electrical data: none

Materials medium-contact

Brass construction: CW614N nickelled, CW614N, 1.4310, hard ferrite, NBR

Stainless steel construction: 1.4571, 1.4404, 1.4310, hard ferrite PTFE-coated, FKM

Non-mediumcontact materials: Acrylic, PVC

Weight: see table "Dimensions and weights"

Installation location

Standard: horizontal inwards flow from the left; other installation positions are possible; the installation position affects the display range.
