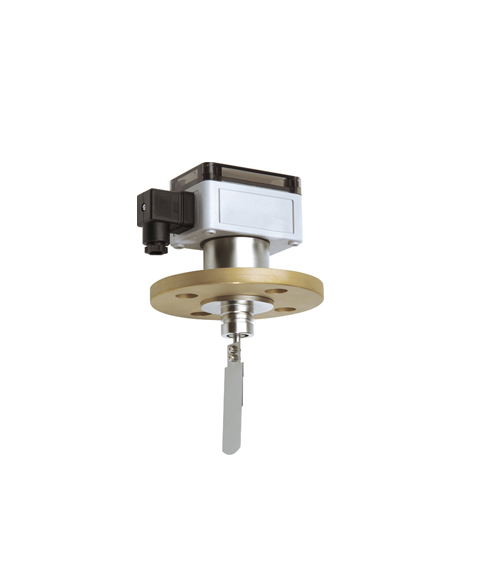

Senseca UB1-032EK Flow Switch (3.0 - 3.5 m3/h, DN 32, stainless steel construction)

Switch: micro switch

Nominal width: DN 32

Process connections: installation flange DIN 2527 DN 32 PN 16 sealing surface as per DIN 2526 form C

Switching range: 3.0 - 3.5 m3/h

Qmax.: 8 m3/h

Tolerance: ±15 % of full scale value

Pressure rating: PN 16 bar

Medium temperature: -20..+ 140°C (no superheated steam)

Ambient temperature: -20..+70 °C

Media: water (oils, gases and aggressive media available on request)

Materials medium-contact

Stainless steel construction: 1.4305, 1.4571, 1.4310, 1.4310, Hard ferrite PTFE coated, FKM

Non-medium contact materials: PC, PA

Weight: 2.5 kg

Installation location

Standard: horizontal inwards flow; switching unit not recommended underneath; other installation positions are possible; the installation position affects the switching point and switch range

Protection class: 2 - safety insulation

Ingress protection: IP 65

Electrical connection: plug DIN 43650-A / ISO 4400, optionally for round plug connector M12x1, 4-pole (max 4A)
