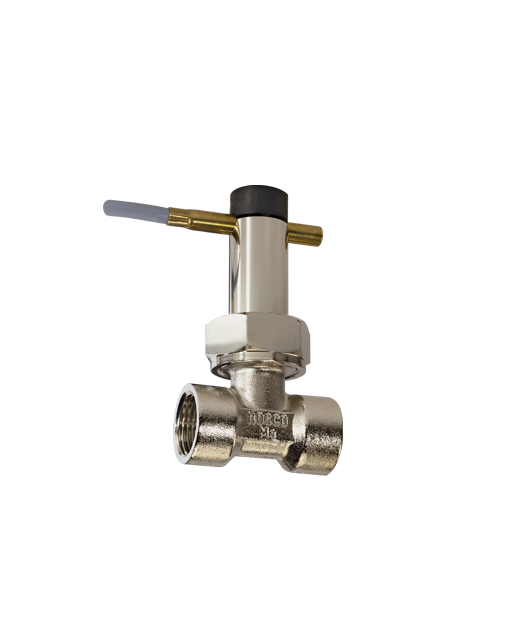

Senseca UR1-050GMS Flow Switch (42.0 – 53.0 l/min, PN 25, brass)

Switch: reed switch

Nominal width: DN 50

Process connections: female thread G 2

Switching range: 42.0 – 53.0 l/min

Qmax.: 150l/min

Tolerance: ±15 % of full scale value

Pressure rating: PN 25

Medium temperature: -20..+ 110°C

Ambient temperature: -20..+70 °C

Media: water (oils, gases and aggressive media available on request)

Electrical data: see "UR1 brass switching unit"

Materials medium-contact

Brass construction: CW713R nickelplated, CW614N nickelplated 1.4310, 1.4301, hard ferrite, NBR

Non-medium contact materials: see "UR1 brass switching unit"

Weight: see table "Dimensions and weights"

Installation location

Standard: horizontal inwards flow; switching unit not recommended underneath; other installation positions are possible; the installation position affects the switching point and switch range

Switching voltage: max. 230 V AC

Switching current: max. 1 A

Switching capacity: max. 50 VA

Protection class: 1 - PE connection

Ingress protection: IP 65

Electrical connection: cable 1.5 m, optionally for round plug connector M12x1, 4-pole

Materials, non medium-contact: CW614N, nickelled, CW614N, NBR, POM
