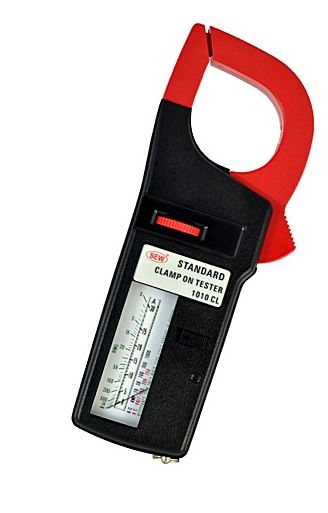

SEW 1010 CL Clamp Meter (AC 1000A)
Manufacturer: SEW Model: 1010 CL - Contact
AC A: 10 / 30 / 100 / 300 / 1000A ±3% of F.S.(50/60Hz)
AC V 150 / 300 / 750V ±3% of F.S.
Ω 2kΩ ±3% of Scale length
Frequency response
50 / 60Hz for ACA 10A
50-400Hz for ACA
30 / 100 / 300 / 1000A
Dimensions 227(L) × 73(W) × 33(D)mm
Conductor size 52mm Max.
Weight (battery Included) Approx. 460g
Accessories : Instruction manual ,Test leads Ohm test probe, Soft pouch(CAC-3600 B )
Details
| FEATURES | ||||||||||||||||||||||||||||||||
| ● Rotary scale which presents only one scale in windows at one time to avoid any possible reading errors. ● Pointer lock function freezes the reading in dimly lit or hard to reach places. ● Ω range ideal for checking the continuity or relays, transformers and motor coils. ● TAUT BAND movement. |
||||||||||||||||||||||||||||||||
| SPECIFICATIONS | ||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||
