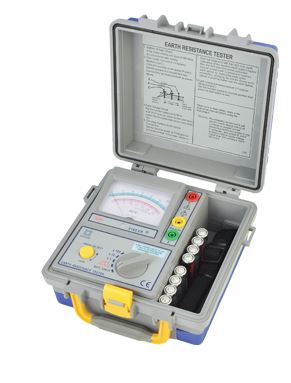

SEW 2105 ER3Wire Earth Resistance Tester
Manufacturer: SEW Model: 2105 ER - Contact
Measuring ranges Earth resistance
0-12Ω / 0-120Ω / 0-1200Ω
Earth voltage 0-30 Vac (40-500Hz)
Accuracy Earth resistance ±3% of full scale
Earth voltage ±2.5% of full scale
Measuring system Earth resistance by constant current
inverter 820Hz, 2mA approx.
Open circuit
indication LED will be unlit
Dimensions 210(L) × 210(W) × 100(D)mm
Weight
(battery included) Approx. 1000g
Power source 1.5V (AA) × 8
Safety standards EN 61010-1 CAT III 30V
EN 61326-1
Accessories
Instruction manual
Test leads (red-15m, yellow -10m,
green-5m)
Auxiliary earth spikes
Simplified measurement probe
Shoulder belt Batteries
Details
| FEATURES | ||||||||||||||||||||||||
| ● Capable of measuring earth resistance and earth voltage. ● 2mA measuring current permits the testing of earth resistance without tripping earth leakage current breakers in the circuit under test. ● In addition to facilitating for precision measurement, test leads for simplified two-wire measuring system also are supplied as standard accessories. ● Battery operated. ● Battery life indicator. ● Calibration performed with supplied test leads. |
||||||||||||||||||||||||
| SPECIFICATIONS | ||||||||||||||||||||||||
|
