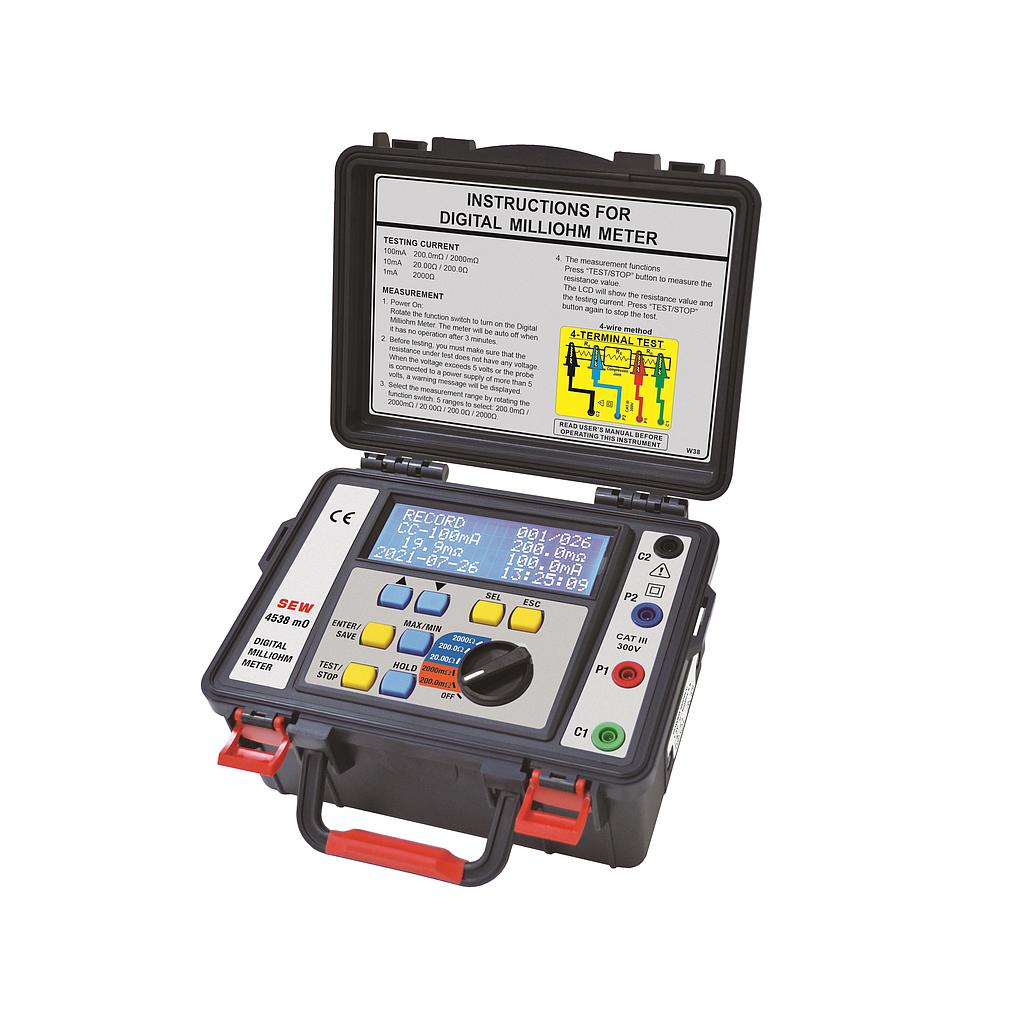

SEW 4538 mO DIGITAL MILLIOHM METER (0~2000Ω, 100mA)

Measuring ranges (mΩ)

0~200.0mΩ in steps of 100uΩ

0~2000mΩ in steps of 1mΩ

0~20.00Ω in steps of 10mΩ

0~200.0Ω in steps of 100mΩ

0~2000Ω in steps of 1Ω

Accuracy: ±0.8% of reading ±4 digits over the operating temperature range, 0°C ~ 40°C, with the supplied test leads

Test current

100mA: 200.0mΩ / 2000mΩ

  10mA: 20.00Ω / 200.0Ω

  1mA: 2000Ω

Protection fuse: 200mA/600V × 1

Operating temperature: 0°C ~ 40°C

Operating humidity: 80% Maximum

Dimensions: 250(L) × 190(W) × 126(D)mm

Weight (battery included): Approx. 2035g

Power source: 1.5V "C" battery × 8

Safety standard

EN 61010-1 CAT III 300V

EN 61326-1

Accessories

Instruction manual

Test leads

Shoulder belt

Batteries
