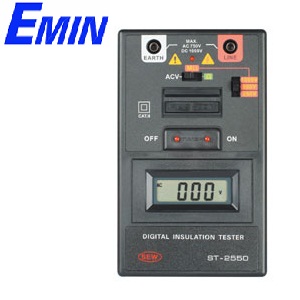

SEW ST-2550 Insulation Tester Up To 1 kV (Digital) (2000M Ohm, 1000V)
Manufacturer: SEW Model: ST-2550 Origin: Taiwan - Contact
| INSULATION RESISTANCE | |
| Test Voltage (DC V) | 250V/500V/1000V |
| Output Voltage Open Circuit | + 10% |
| Measuring Ranges (Auto) | 0-20/0-200/0-2000M Ohm |
| Accuracy | 0-20M Ohm : +/- (1.5%rdg+2dgt), 0-200M Ohm : +/- (2.5%rdg+2dgt), 0-2000M Ohm : +/- (5%rdg+3dgt) |
| CONTINUITY TEST RANGES | |
| Measuring Ranges | 200 Ohm |
| Short Circuit Current | 11mA |
| Accuracy | +/- (1.5%rdg+2dgt) |
| Buzzer Sounds Below | 10 Ohm |
| AC VOLTAGE RANGE | |
| Range | 0-600V AC |
| Accuracy | +/- (1.5%rdg+2dgt) |
| GENERAL | |
| Dispaly | LCD 3-1/2 (2000 counts) |
| Impedance | 10M Ohm |
| Power Source | 1.5V (SUM-3) x 6 Type AA |
| Dimensions | 163(L) x 100(W) x 50(D)mm |
| Weight | Approx. 440g (battery included) |
| Accessories | Test eads, heavy-duty case, instruction manual, batteries |
Manufacturer: SEW Taiwan
Warranty: 12 months
Discontinued
