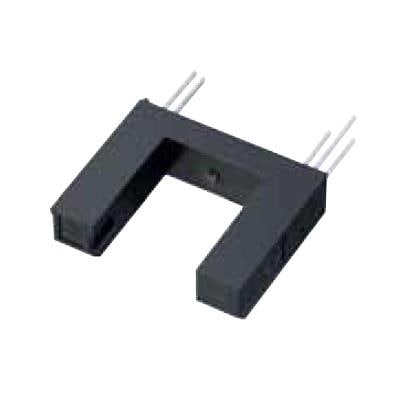

Sharp Microelectronics GP1A57HRJ00F Optical Switches, Transmissive, Photo IC Output OPIC Photointerruptr Schmdt Gap 10.0mm
Manufacturer: Sharp Microelectronics Model: GP1A57HRJ00F - Contact
Width: 18.6 mm
Height: 15.9 mm
Length: 5 mm
Fall Time: 0.05 us
Rise Time: 0.1 us
Slot Width: 10 mm
Output Type: Pull Up, Buffer
Unit Weight: 1.169 g
Aperture Width: 1.8 mm
Sensing Method: Transmissive, Slotted
Number of Channels: 1 Channel
If - Forward Current: 7 mA
Ir - Reverse Current: 10 uA
Vf - Forward Voltage: 1.14 V
Vr - Reverse Voltage: 3 V
Pd - Power Dissipation: 250 mW
Low Level Output Current: 16 mA
Low Level Output Voltage: 150 mV
Operating Supply Voltage: 4.5 V to 17 V
High Level Output Voltage: 4.9 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 25 C
