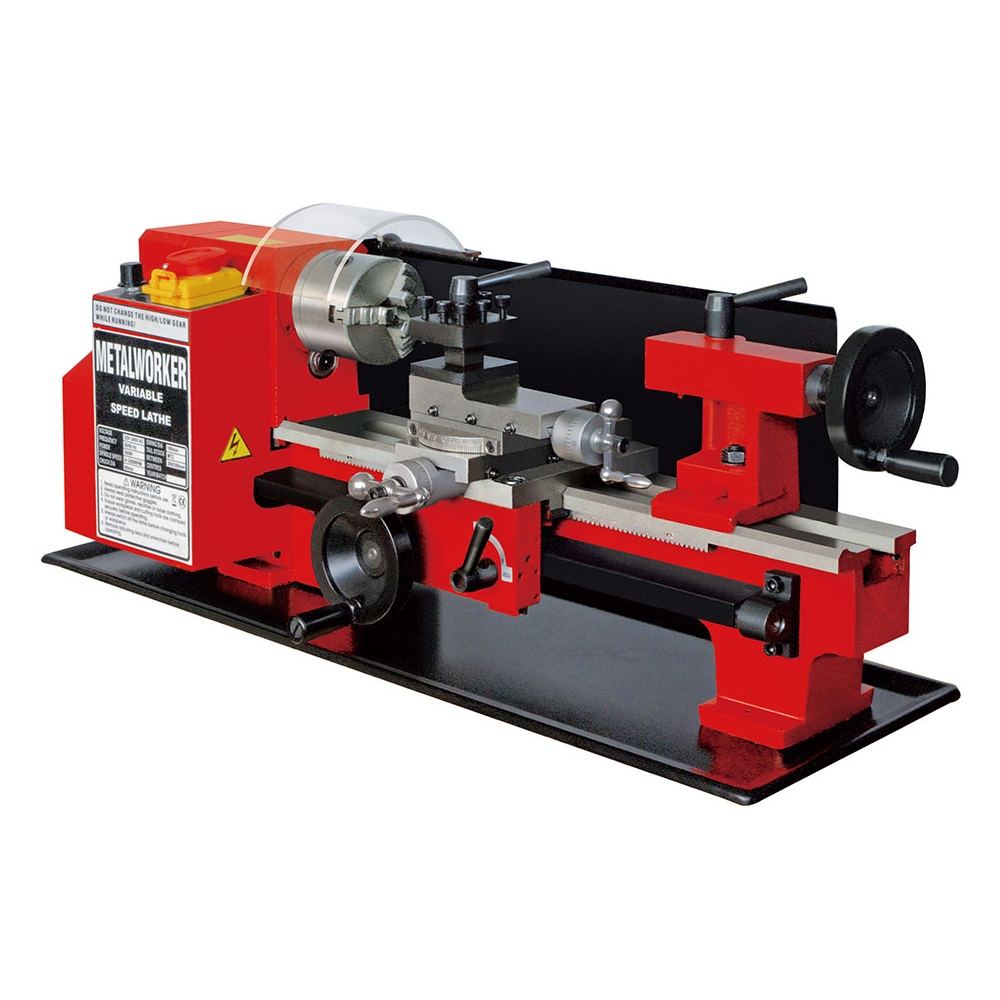

Sieg C2 Mini Lathe (250W)
Manufacturer: Sieg Model: C2 - Contact
Swing over bed: 180 mm
Distance between centers Model 200: 200 mm
Model 300: 300 mm
Hole through spindle: 20 mm
Cross slide travel: 65 mm
Compound travel: 55 mm
Spindle taper: MT3
Tailstock taper: MT2
Spindle speed Low range: 100-1100 ±10% rpm
High range: 100-2500 ±10% rpm
Motor output power: 250 W
Range of threads Metric version: 0.4-2.0 mm (10 thread pitches)
Imperial version: 12-52 TPI (18 thread pitches)
Overall dimension(LxWxH)Model200: 600x300x300 mm
Model 300: 700x300x300 mm
Weight (Net/Gross) Model 200: 33/36 kg
Model 300: 37/40 kg
Packing size (LxWxH) Model 200: 690x360x390 mm
Model 300: 790x360x390 mm
