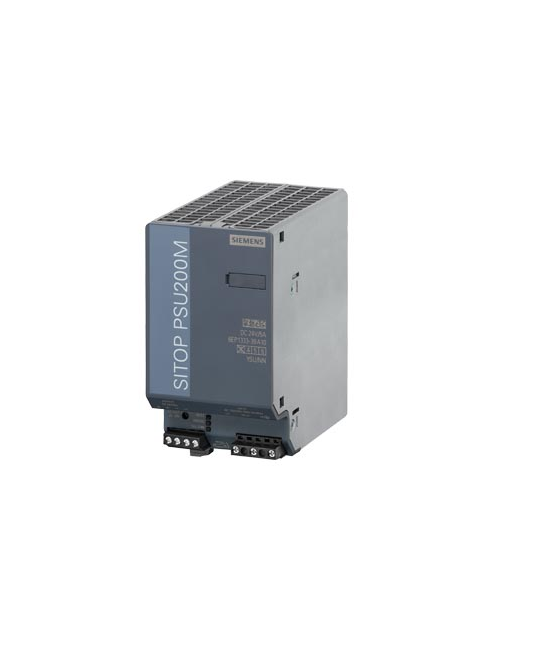

SIEMENS 6EP1333-3BA10 SITOP Power Supply (120/230-500 V AC, 24 V DC/5 A)

Input

type of the power supply network: 1-phase and 2-phase AC

supply voltage at AC: Set by means of selector switch on the device; starting from Vin > 90/180 V

supply voltage 1 at AC: 120 ... 230 V

supply voltage 2 at AC: 230 ... 500 V

input voltage 1 at AC: 85 ... 264 V

input voltage 2 at AC: 176 ... 550 V

wide range input: Yes

overvoltage overload capability: 1300 Vpeak, 1.3 ms

buffering time for rated value of the output current in the event of power failure minimum: 25 ms

operating condition of the mains buffering: at Vin = 120/230 V, typ. 150 ms at Vin = 400 V

line frequency: 50/60 Hz

line frequency: 47 ... 63 Hz

input current

● at rated input voltage 120 V: 2.2 A

● at rated input voltage 230 V: 1.2 A

● at rated input voltage 500 V: 0.61 A

Output

voltage curve at output: Controlled, isolated DC voltage

output voltage at DC rated value: 24 V

output voltage

● at output 1 at DC rated value: 24 V

output voltage adjustable: Yes; via potentiometer

adjustable output voltage: 24 ... 28.8 V

relative overall tolerance of the voltage: 3 %

relative control precision of the output voltage

● on slow fluctuation of input voltage: 0.1 %

● on slow fluctuation of ohm loading: 0.1 %

residual ripple

● maximum: 50 mV

voltage peak

● maximum: 200 mV
